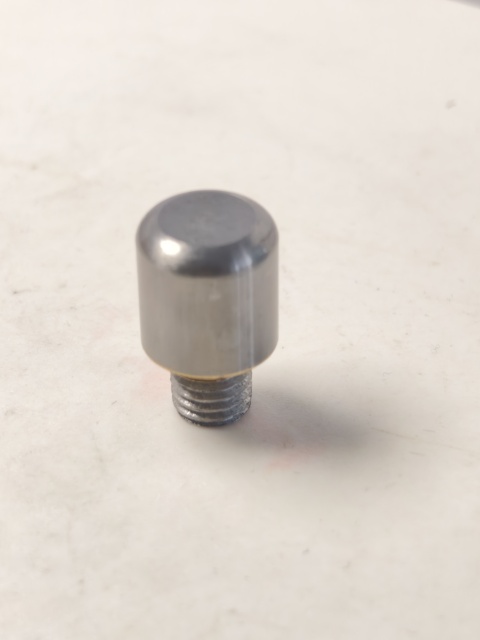

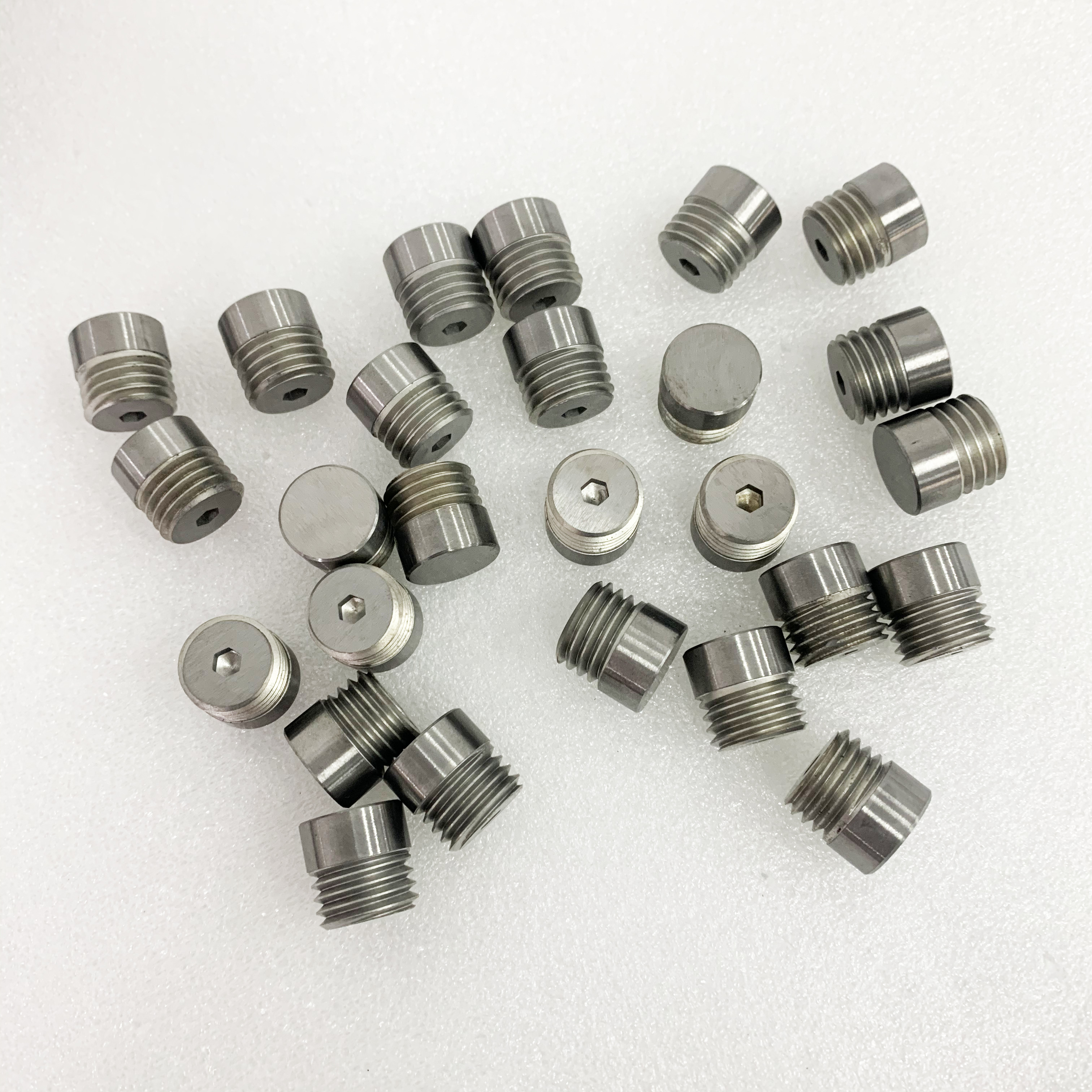

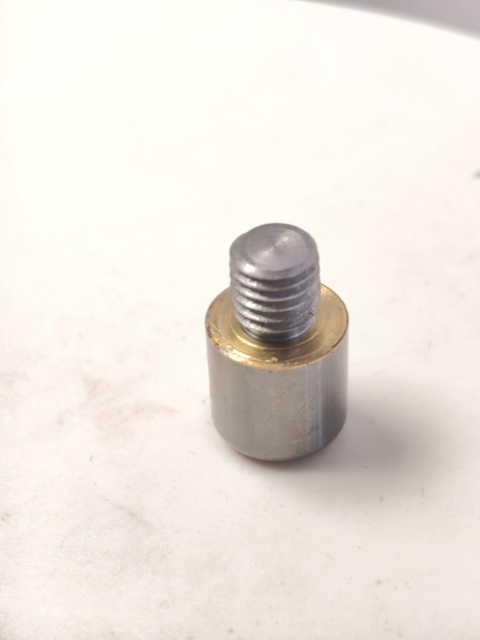

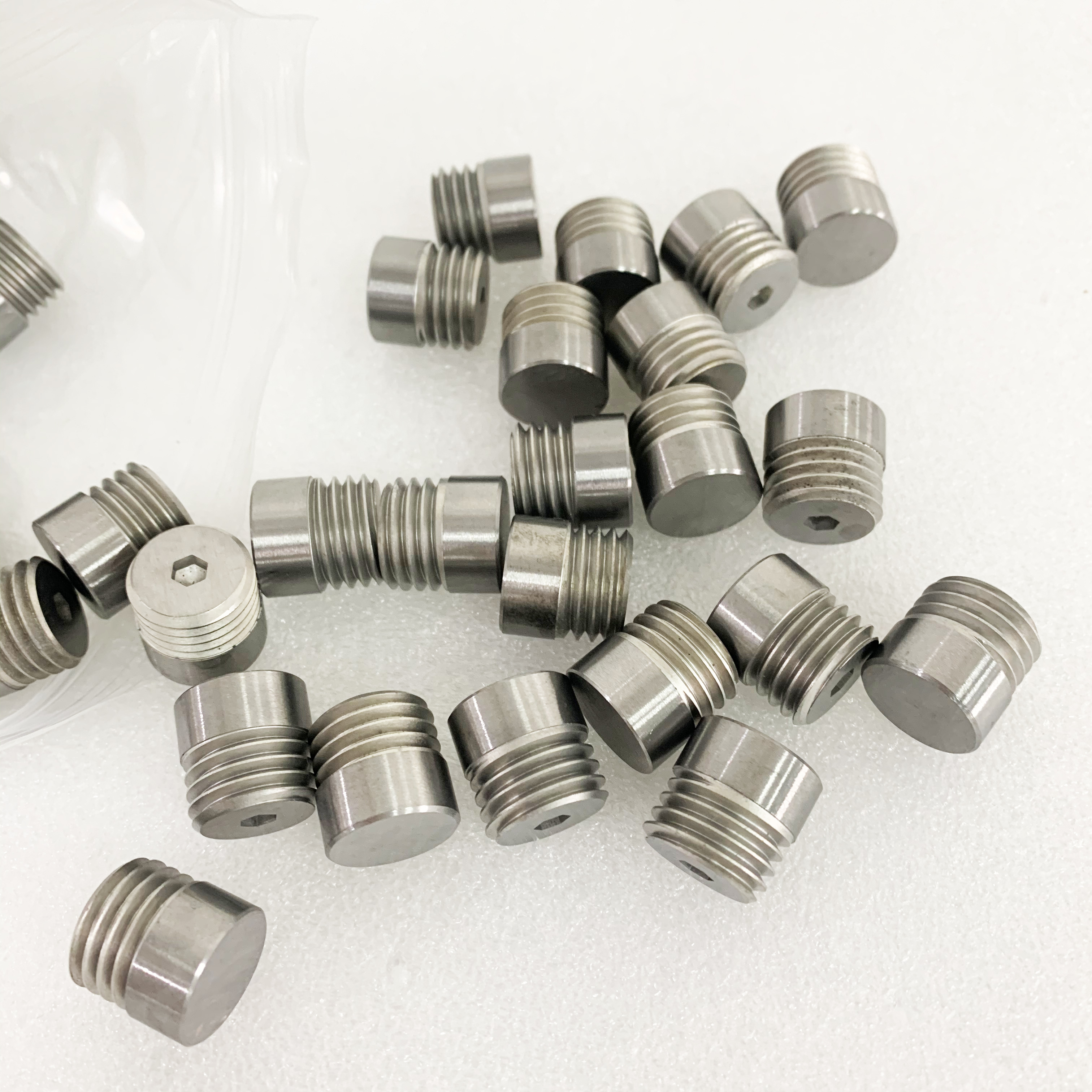

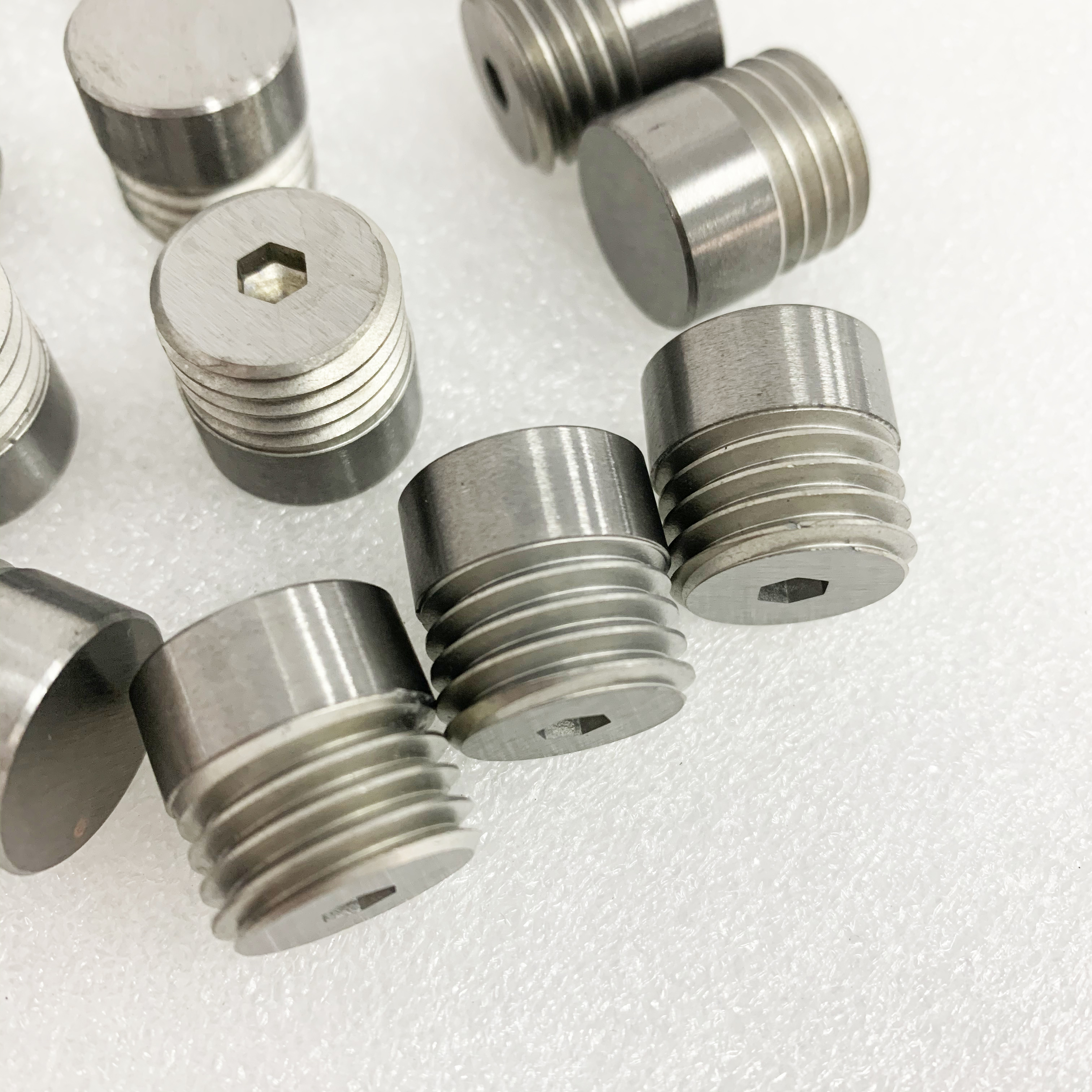

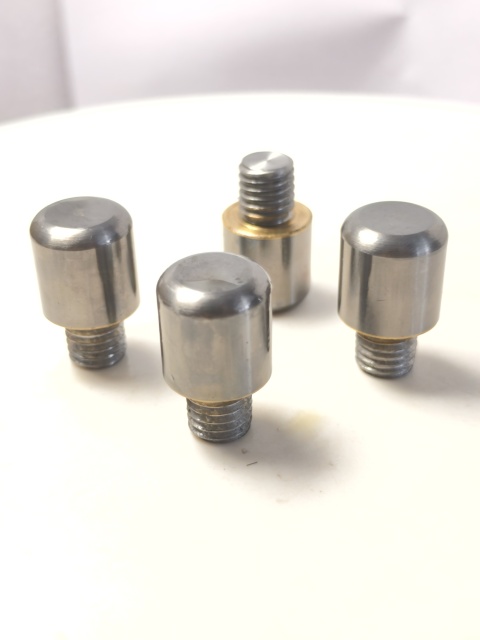

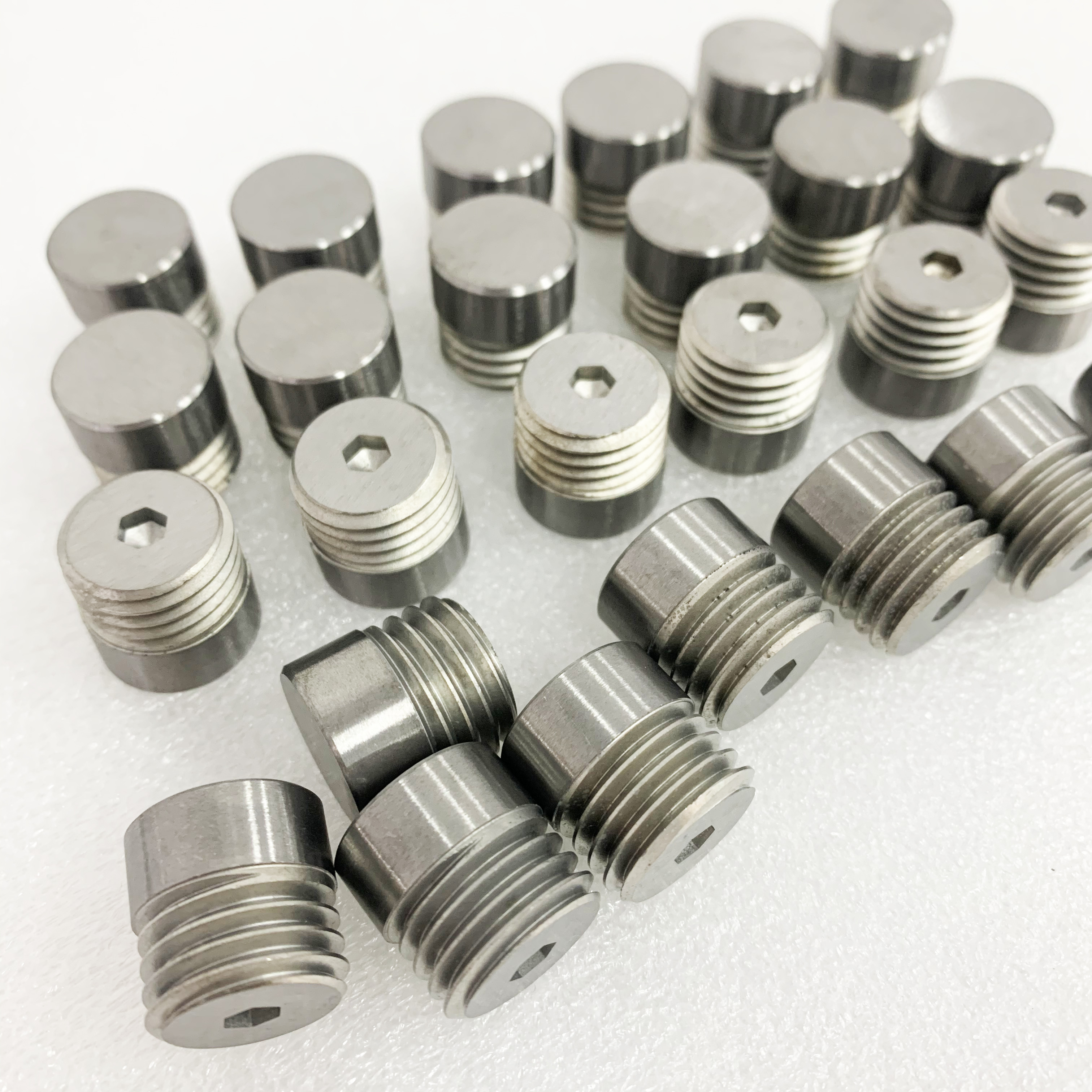

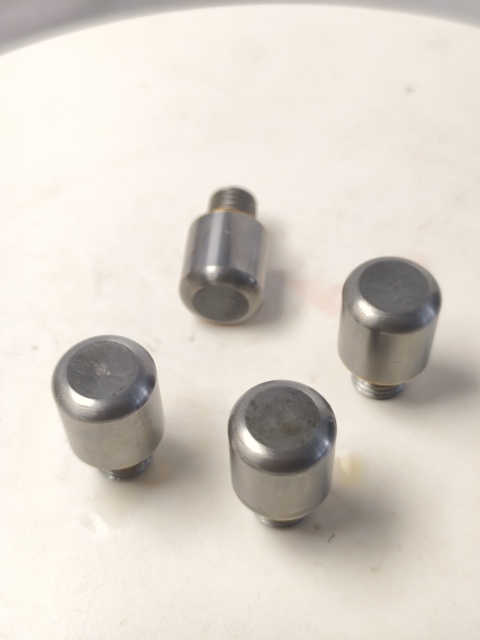

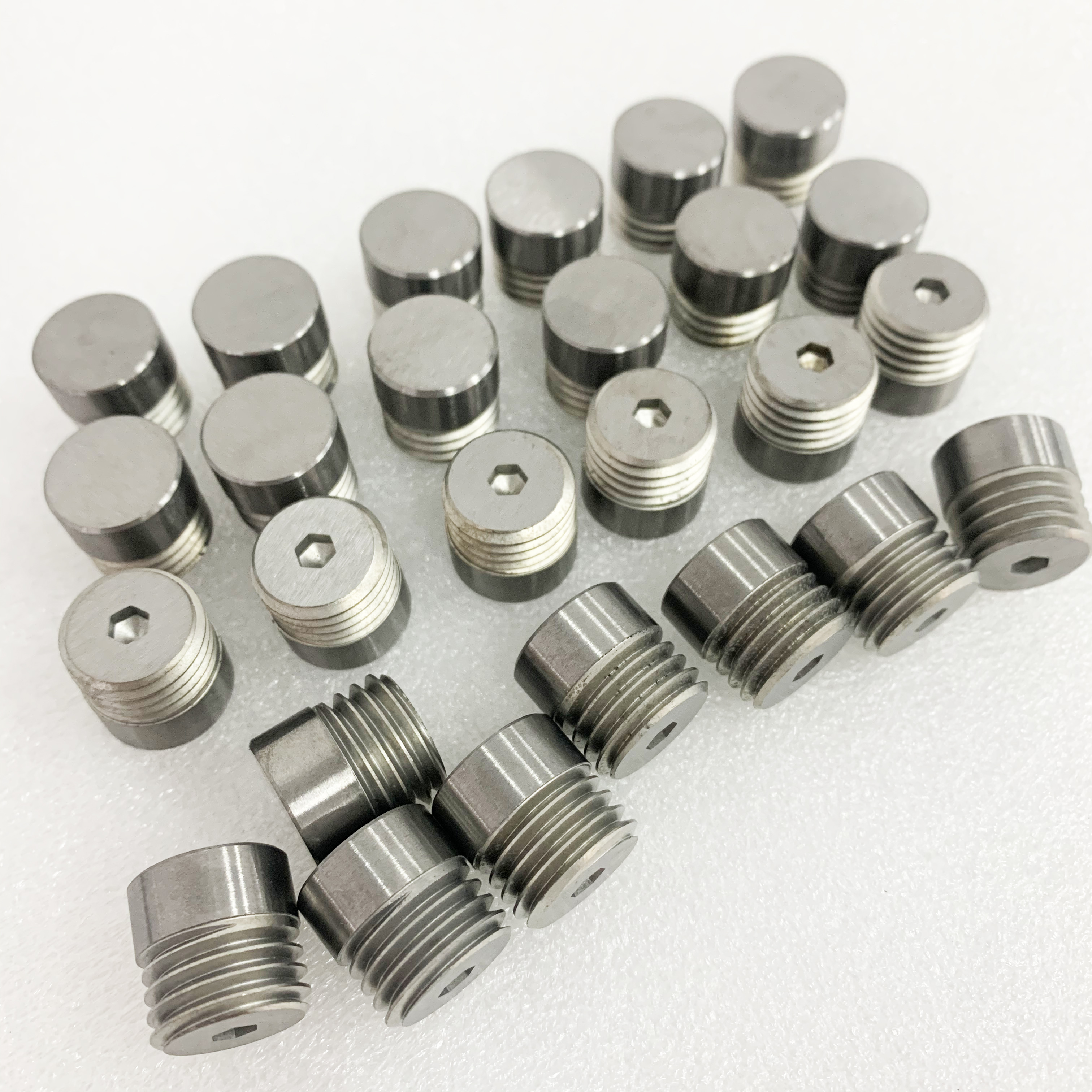

Precision-engineered YG10X alloy pegs with 100% WC composition — engineered for extreme wear resistance and long service life in horizontal grinding mills.
Engineered for the most demanding horizontal grinding mill applications, our tungsten carbide pegs deliver unmatched durability and wear resistance under high-speed, high-load conditions. Built exclusively from 100% pure tungsten carbide (WC) using premium YG10X alloy — optimized for superior hardness (≥92.5 HRA), fracture toughness, and resistance to abrasive wear — these pegs significantly extend equipment uptime and reduce maintenance frequency. Designed for global industrial OEMs and precision grinding system integrators seeking reliable, high-yield consumables with traceable material origin (Zhuzhou, China) and rapid fulfillment.
Specifically formulated for high-wear environments — delivers optimal balance of hardness (92.5–93.5 HRA), transverse rupture strength (>2200 MPa), and thermal stability up to 800°C.
No binder dilution or secondary alloys — full-density sintered structure ensures maximum abrasion resistance and consistent performance across batches.
Standard lead time of just 20–22 days — supported by dedicated production lines, in-house sintering, and streamlined logistics from Zhuzhou manufacturing hub.
Primary application: pin media in horizontal bead mills for ultra-fine dispersion of pigments, inks, ceramics, and battery slurries.
Used in wear-prone components of mixers, extruders, and comminution systems handling abrasive feedstocks (e.g., metal oxides, silica).
Custom-fit solutions for global equipment manufacturers — including thread specification (M1–M36), dimensional tolerance (±0.01 mm), and surface finish (Ra ≤ 0.4 μm).
| Parameter | Value |
|---|---|
| Material Composition | 100% Tungsten Carbide (WC), YG10X grade (90% WC + 10% Co binder) |
| Hardness (HRA) | ≥ 92.5 HRA |
| Density | 14.4–14.6 g/cm³ |
| TRS (MPa) | ≥ 2200 MPa |
| Surface Finish | Ra ≤ 0.4 μm (ground & polished) |
| Thread Standard | ISO metric (M1 to M36), fine/pitch options available |
| Dimensional Tolerance | ±0.01 mm (diameter), ±0.05 mm (length) |
The MOQ is 1 piece for standard configurations. Custom geometries or special coatings may require higher MOQs — contact engineering support for details.
Yes — functional samples are available upon request. Sample lead time is 7–10 working days; nominal fee applies (refundable against first bulk order).

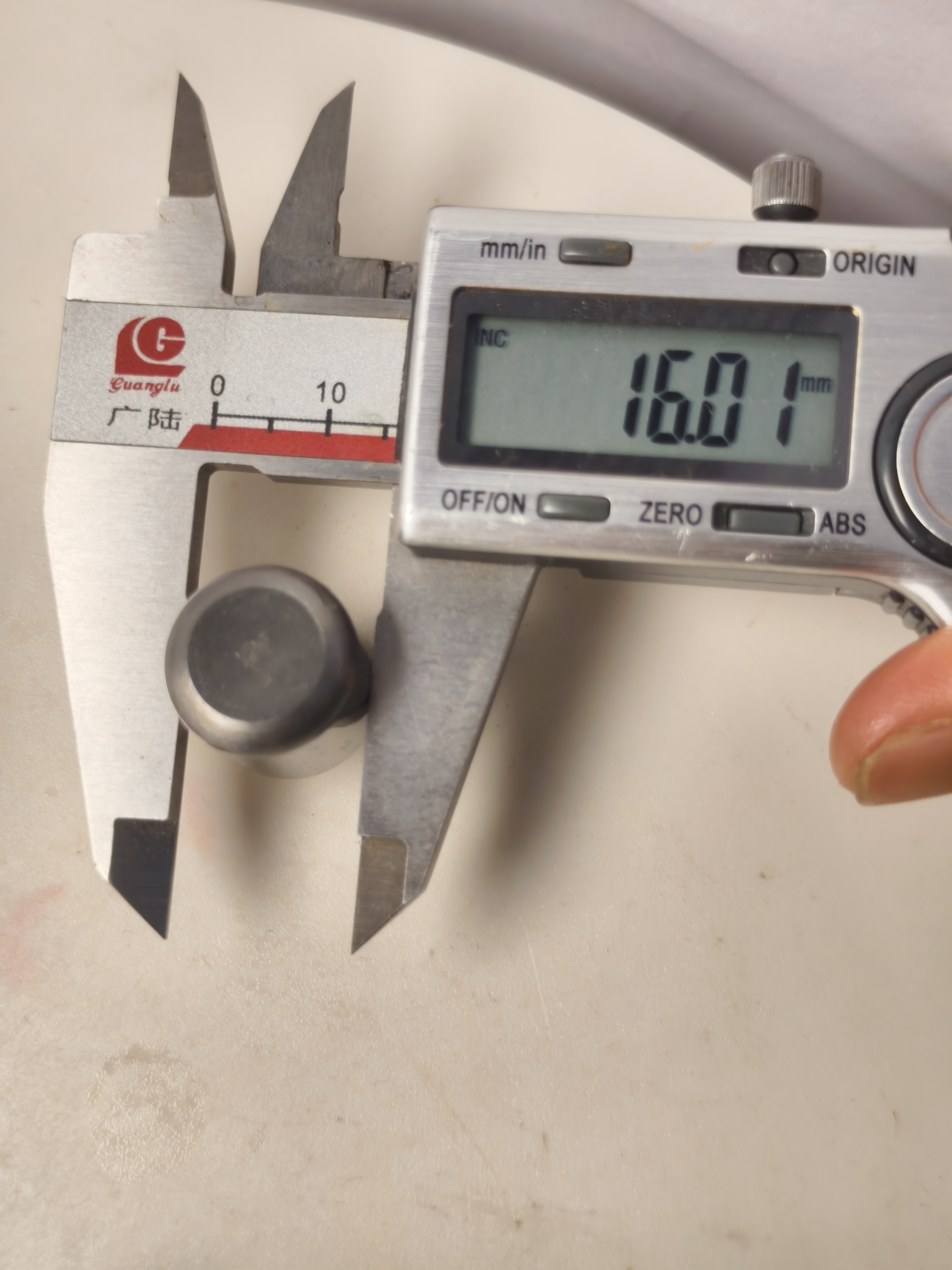

All pegs undergo 100% CMM inspection post-grinding. Final dimensions are verified per ISO 2768-mK standards, with full inspection reports provided on demand.
Contact our technical sales team for custom configuration, volume pricing, or application engineering support.
