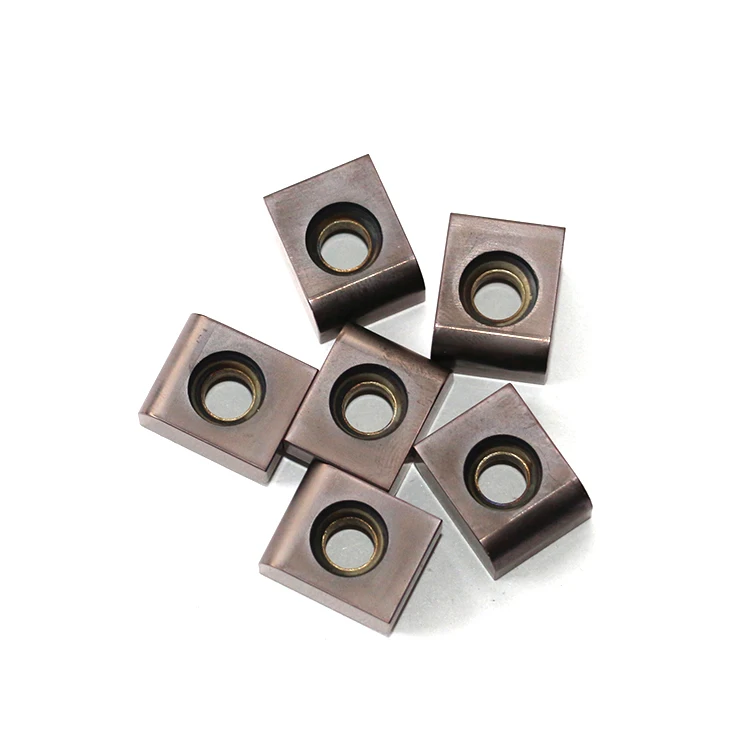

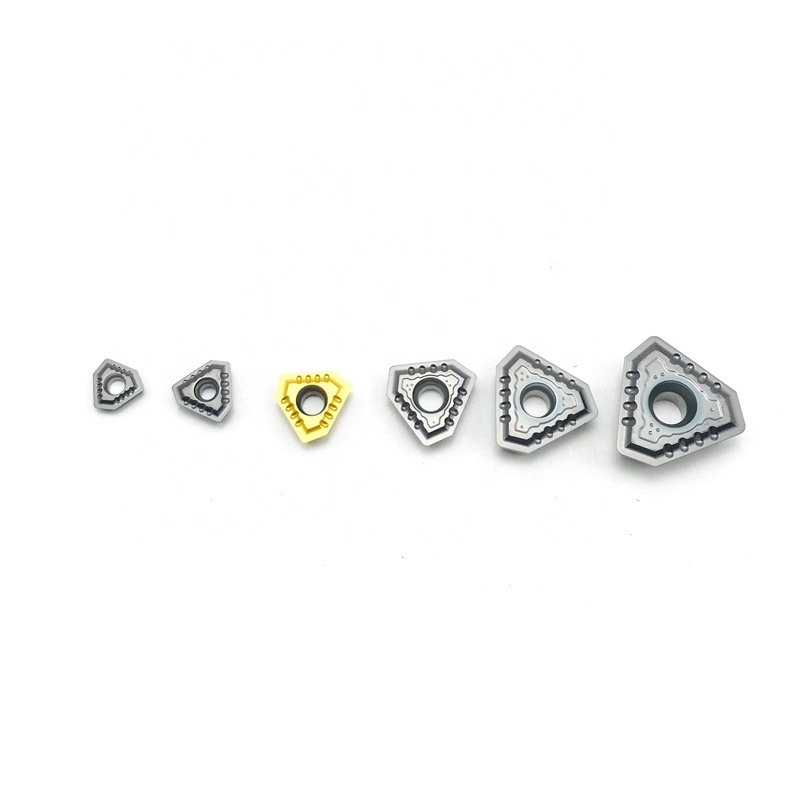

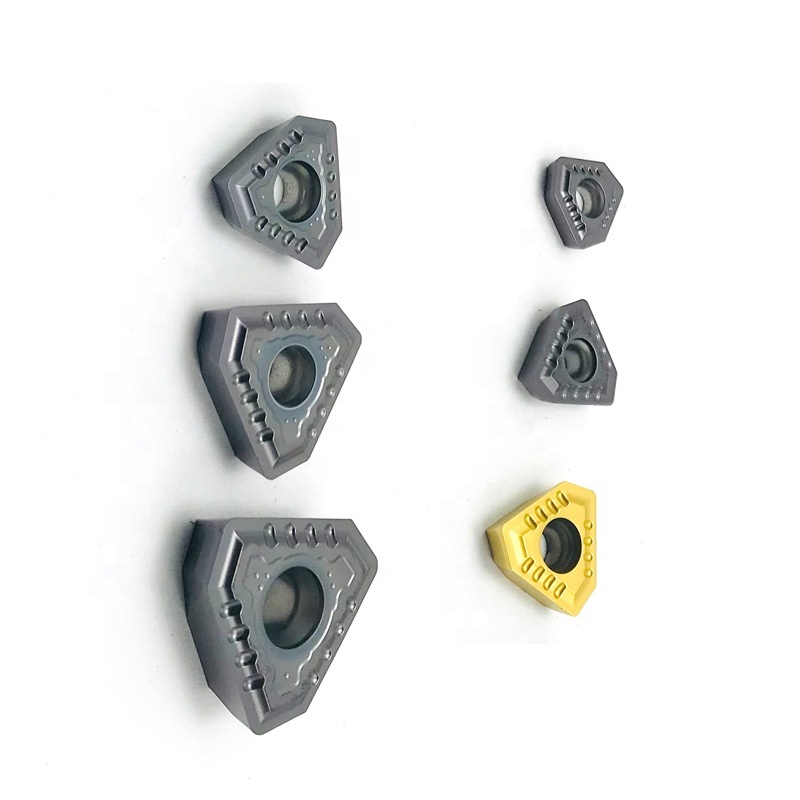

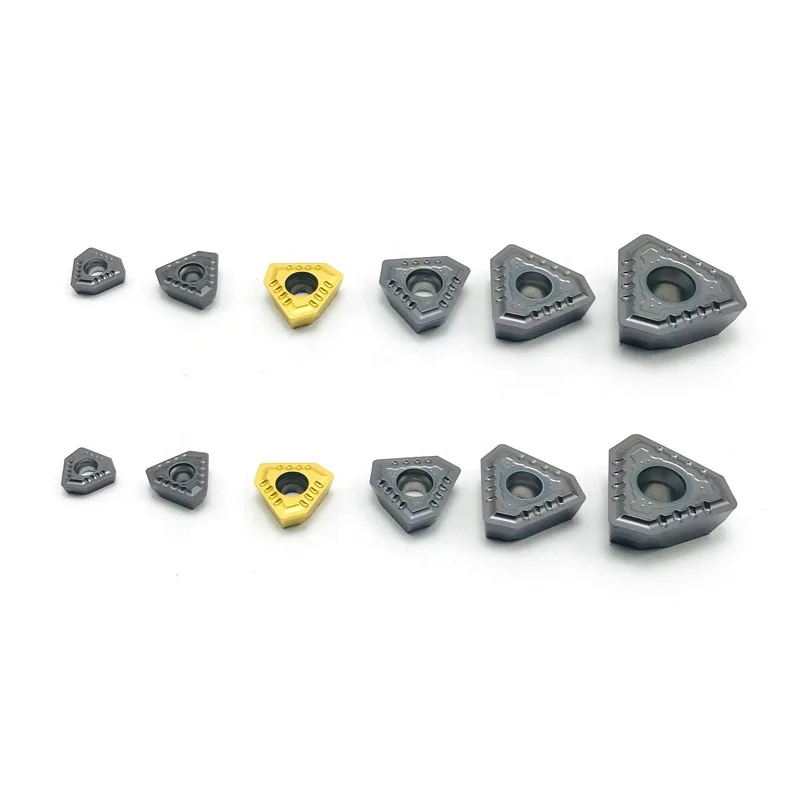

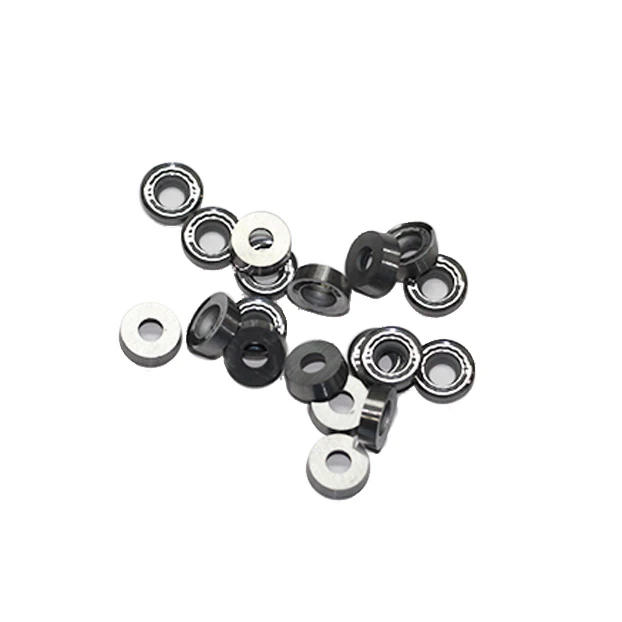

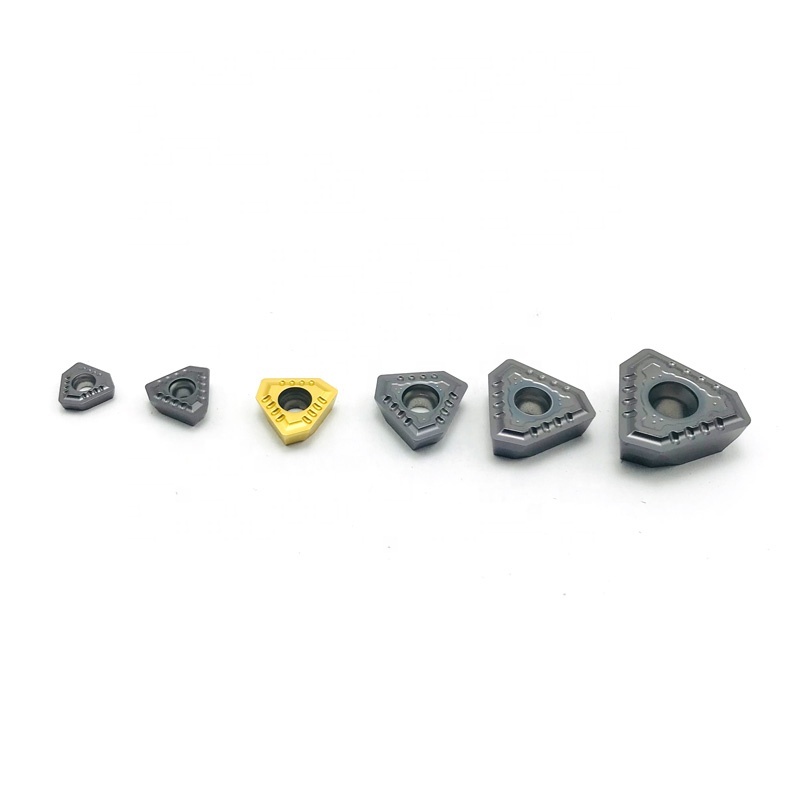

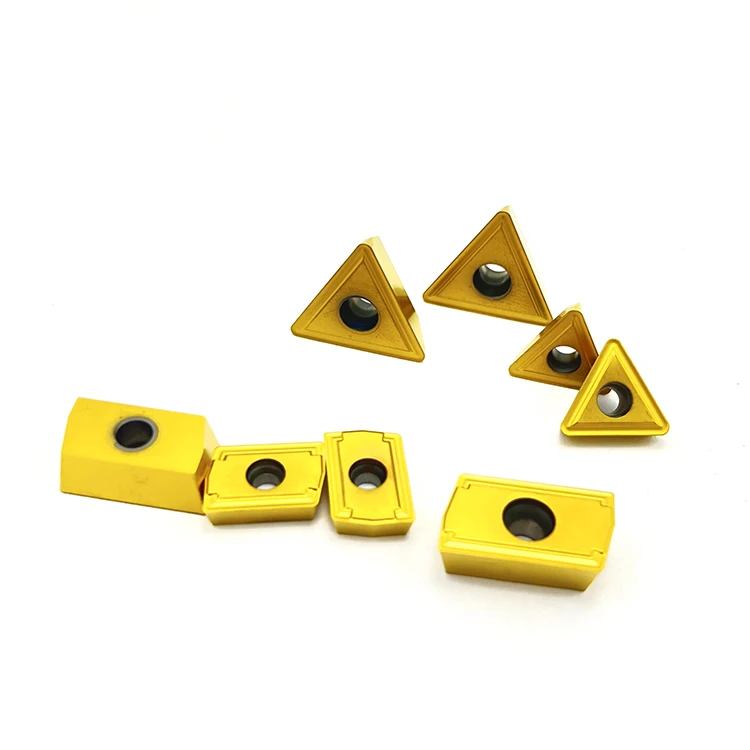

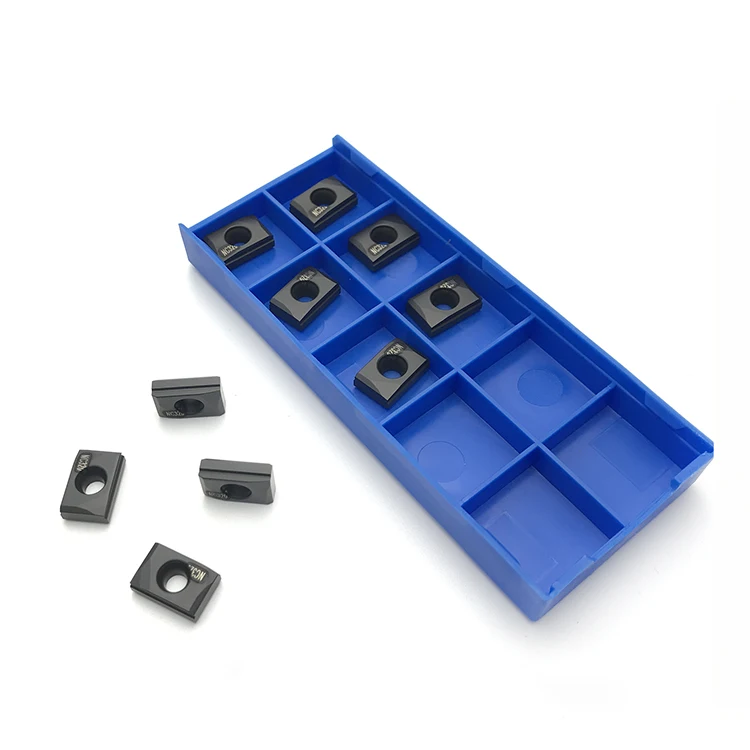

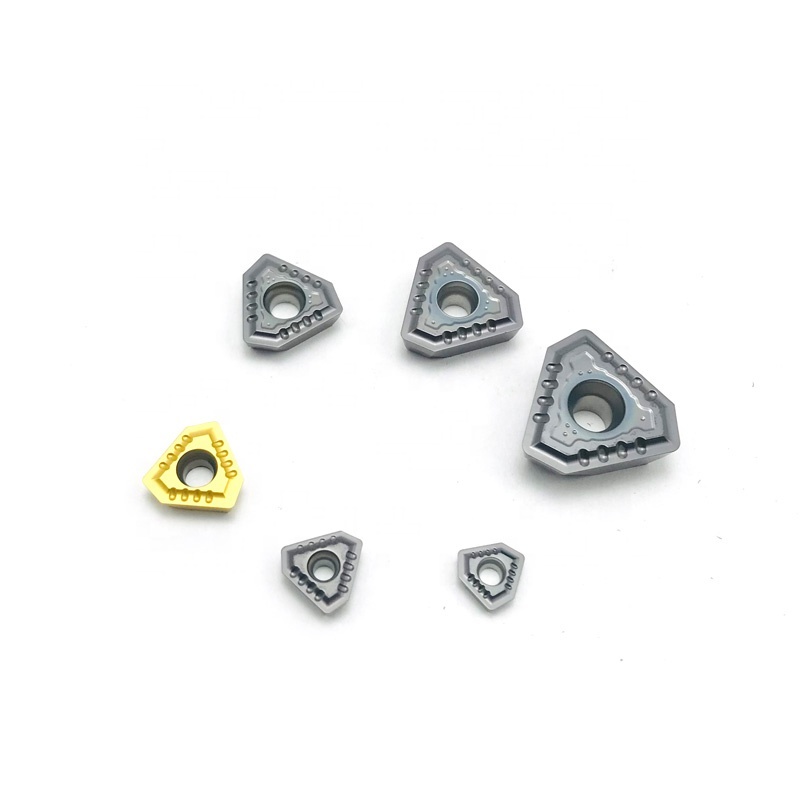

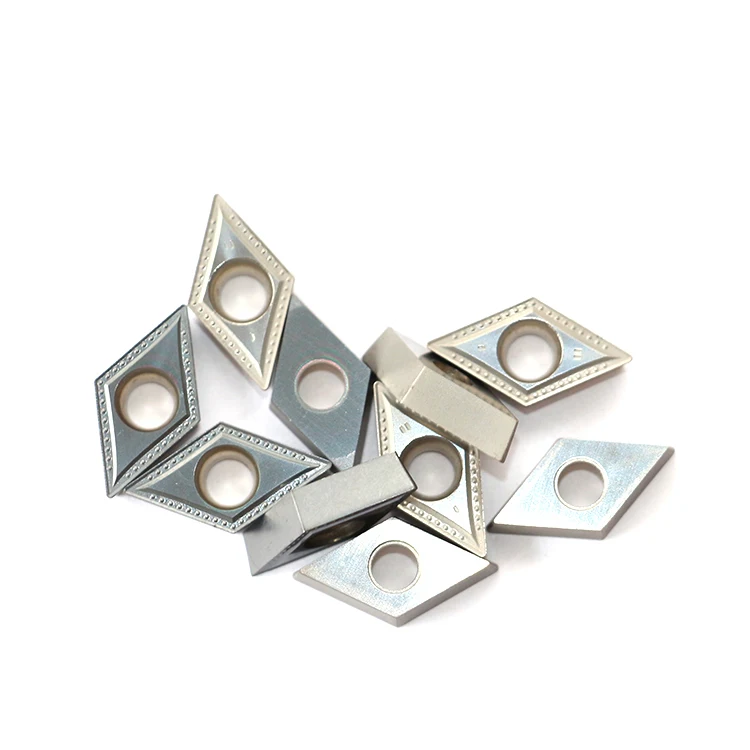

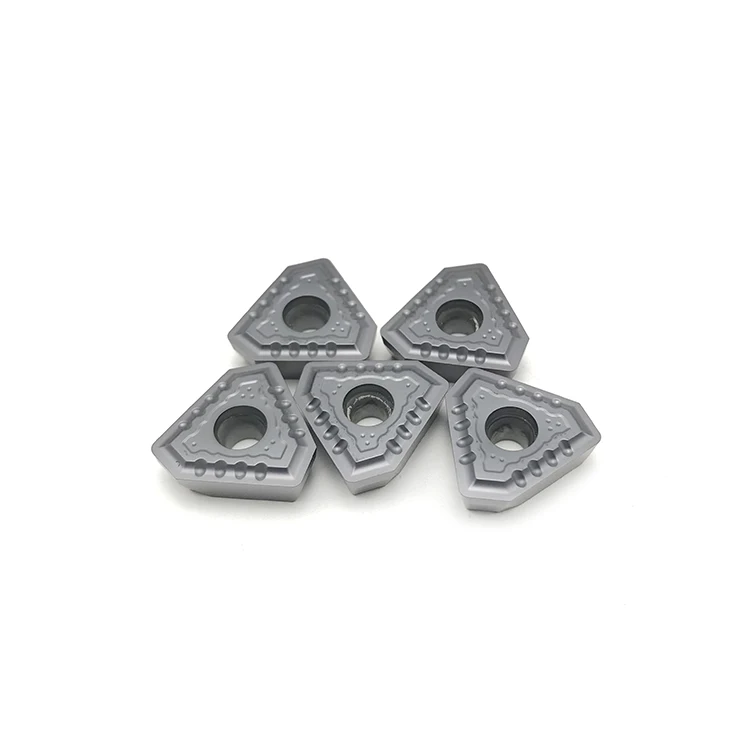

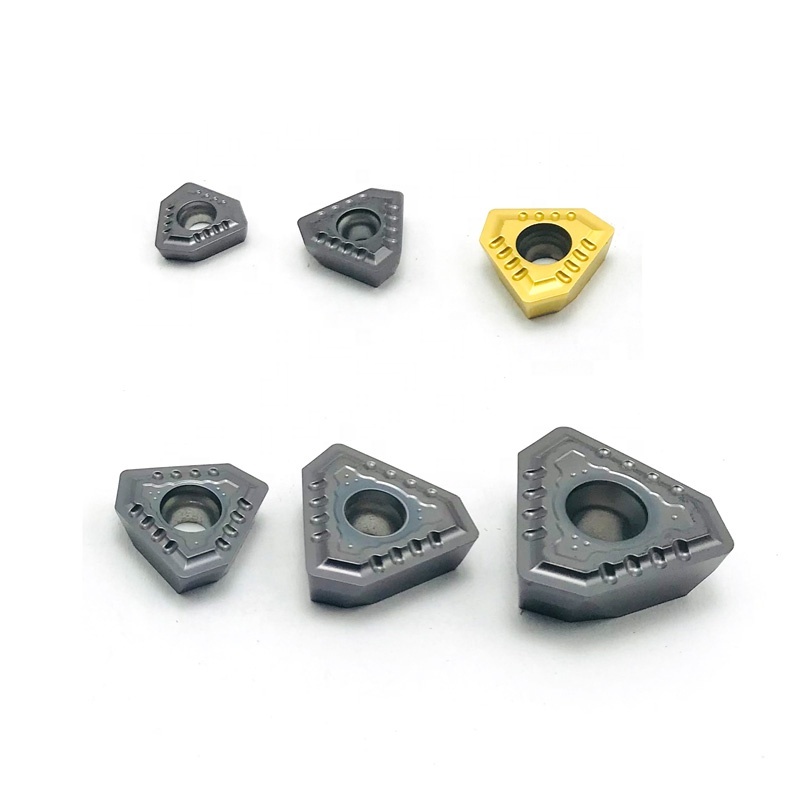

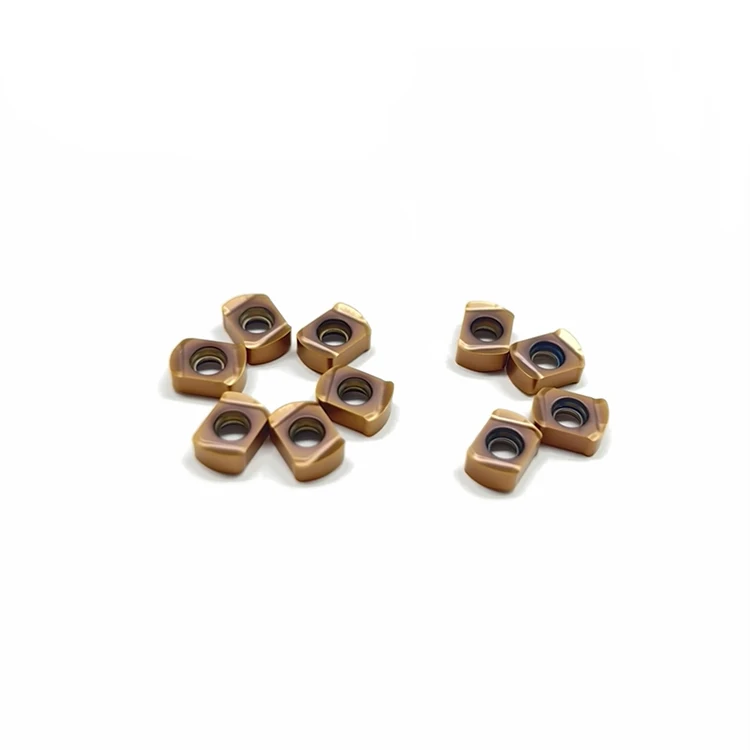

Product Name | Tungsten carbide inserts | ||||||
Material | 100% tungsten carbide raw material. | ||||||
Grade | K10/K20/K30 | ||||||
Type | All sizes of customization are accepted.(CNMG/DCGT/SNMG/VBGT/VCGT/VNMG/APKT/TBGH/TPGH/TCGT/SCGT/MGMN) | ||||||
MOQ | 20pcs | ||||||
Tolerance | Diameter tolerance ±0.02mm, length ±0.2mm(It can also be done according to your needs.) | ||||||
Application | Widely used in metal turning, milling, cutting grooves, thread turning,cnc lathe cutting and other fields. | ||||||
Grade | Density (g/cm³) | Hardness (Hra) | TR.S (Mpa) | Grain Size (μm) | Composition (%） | Advantages/Applications |
YG10X | 14.4 | ≥90.8 | ≥3600 | 0.6 | 10%CO 90%WC | Tungsten carbide inserts are synthesized, extremely tough metal matrix. It is applying to the cutting of hard wood, recyling wood, plywood, mdf board, sandwich board, seel, lead & alminum alloy material.We can produce mould according to your drawings and samples for different shapes and sizes.We offer saw tips of European style, US & Canadian style,metal cutting series. |
YL10.2 | 14.45 | ≥91.8 | ≥3800 | 0.7 | 10%CO 90%WC | |
ZG25 | 14.12 | ≥92.5 | ≥4200 | 0.4 | 10%CO 90%WC | |
ZG09 | 14.5 | ≥93.2 | ≥4000 | 0.5 | 10%CO 90%WC | |
ZG10 | 14.8 | ≥94.1 | ≥3800 | 0.4 | 10%CO 90%WC | |
ZG209 | 14.45 | ≥94 | ≥4200 | 0.2 | 10%CO 90%WC |
