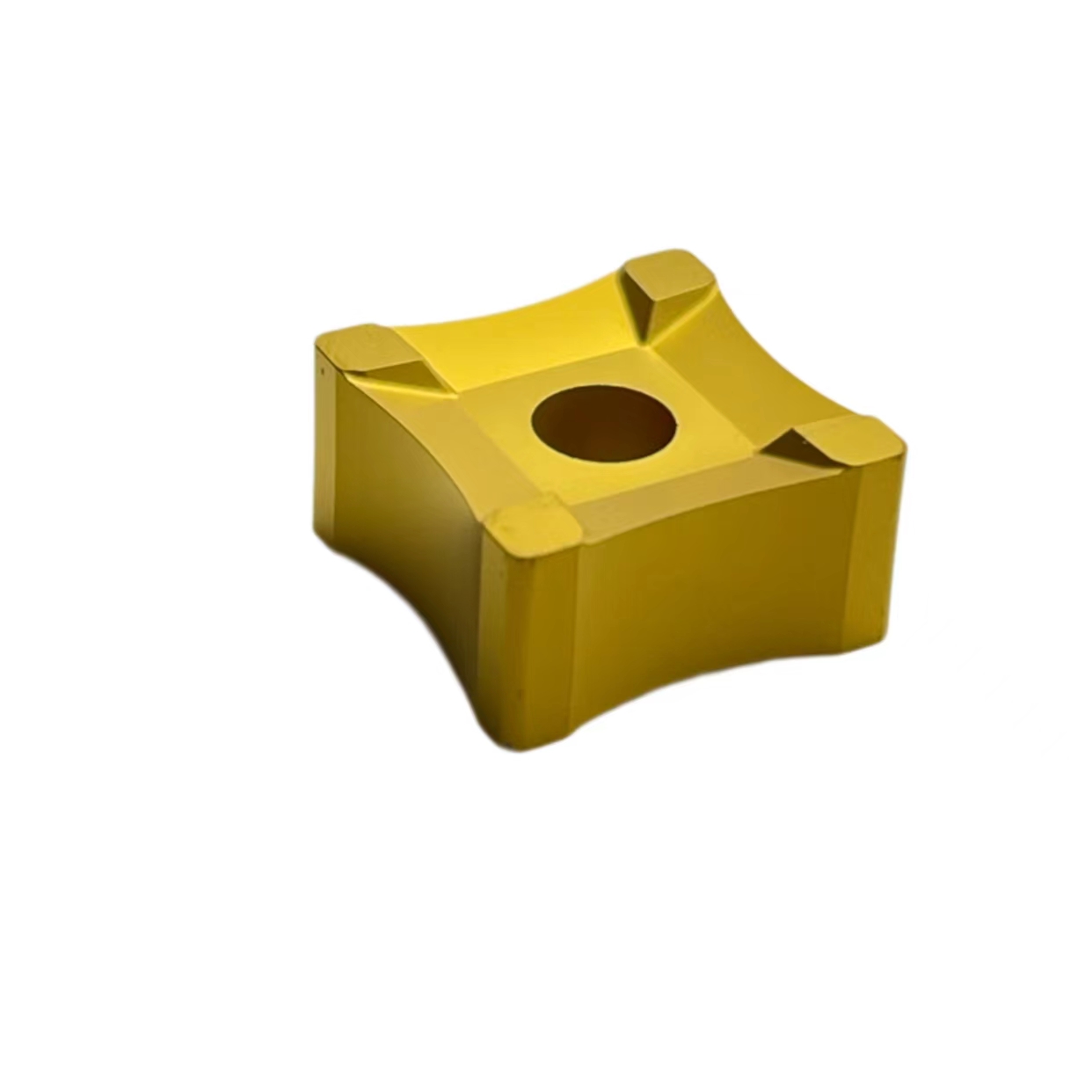

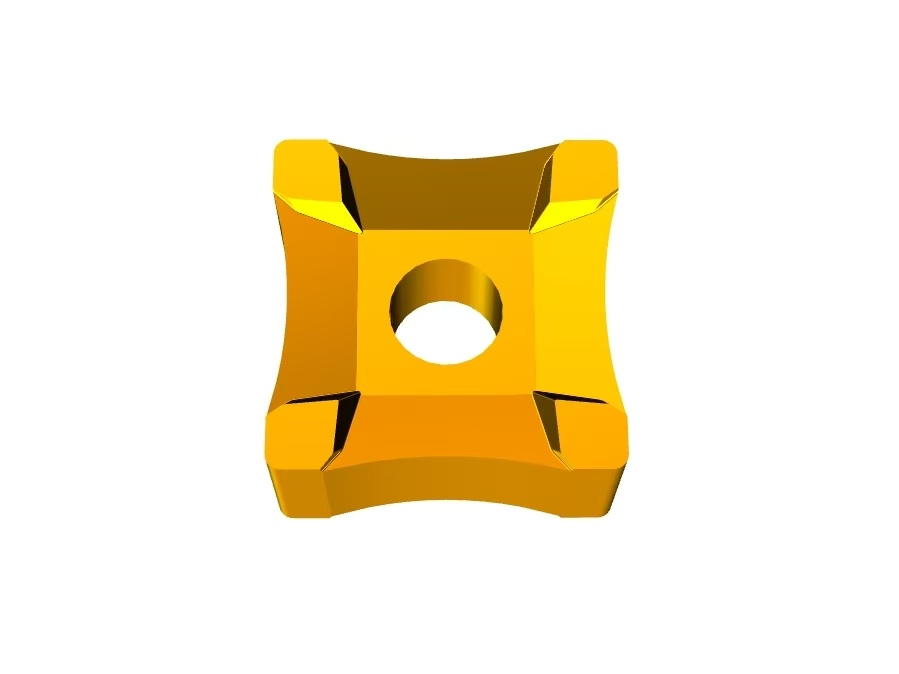

SNMX1507R18R20R22R35R40R60 Scraper bit for pipe weld bid scrafing s

No.00211

Double-sided scarfing insert,
ERW Tube & Pipe Mill Machine Series are the specialized equipment to produce high-frequency straight seam welded pipe and tube for structural pipe and industrial pipe with Φ4.0～Φ273.0mm and the wall thickness δ

Download

View all downloads

Description

SNMX150708-R9 Scraper bit for pipe weld bid scrafing Application:

The products are mainly pipes and tubes used in petroleum, petrochemical, construction, shipbuilding, car making, electric power, mining, coal, machinery manufacturing industries.
This TM-32 ERW Tube & Pipe Mill, complete with un-coiler & strip-head shearer & butt welder station & forming mill & sizing mill & cold flying saw & conveyor table & stacking & packing machine. The optimized design, high-quality material selection, and strict heat treatment process guarantee the high precision, wear-resisting, and long life of the roller.

ERW Specification

Model	Tube O.D (mm)	Wall Thickness (mm)	Square/Rectangle (a:b≤ 2:1,mm)	Wall Thickness (mm)	Speed (m/min)	Main motor (KW)	H.F.Welder (KW)
TM-12	φ4~φ12	0.2~0.5	//	//	30~120	15	100
TM-16	φ6~φ16	0.2~0.8	//	//	30~120	22	100
TM-20	φ7~φ20	0.2~1.0	//	//	30~120	30	100
TM-25	φ9~φ25.4	0.25~1.2	//	//	30~120	37(or22*2)	100
TM-32	φ10~φ32	0.25~1.5	88~25.425.4 106~31.819.1	0.25~1.2	30~120	45(or 30*2)	100
TM-32z	φ10~φ32	0.5~2.0	88~25.425.4 106~31.819.1	0.5~1.5	30~100	55(or 37*2)	100
TM-40	φ12.7~φ40	0.3~1.8	1010~31.831.8 2010~4020	0.3~1.5	30~110	75	150
TM-40z	φ12.7~φ40	0.6~2.0	1010~31.831.8 2010~4020	0.6~1.5	30~100	45*2	150
TM-50q	φ16~φ50.8	0.4~1.5	12.712.7~4040 2010~5025	0.4~1.2	30~110	90	150
TM-50		0.5~2.0		0.5~1.5	30~90	45*2(or 110)	200
