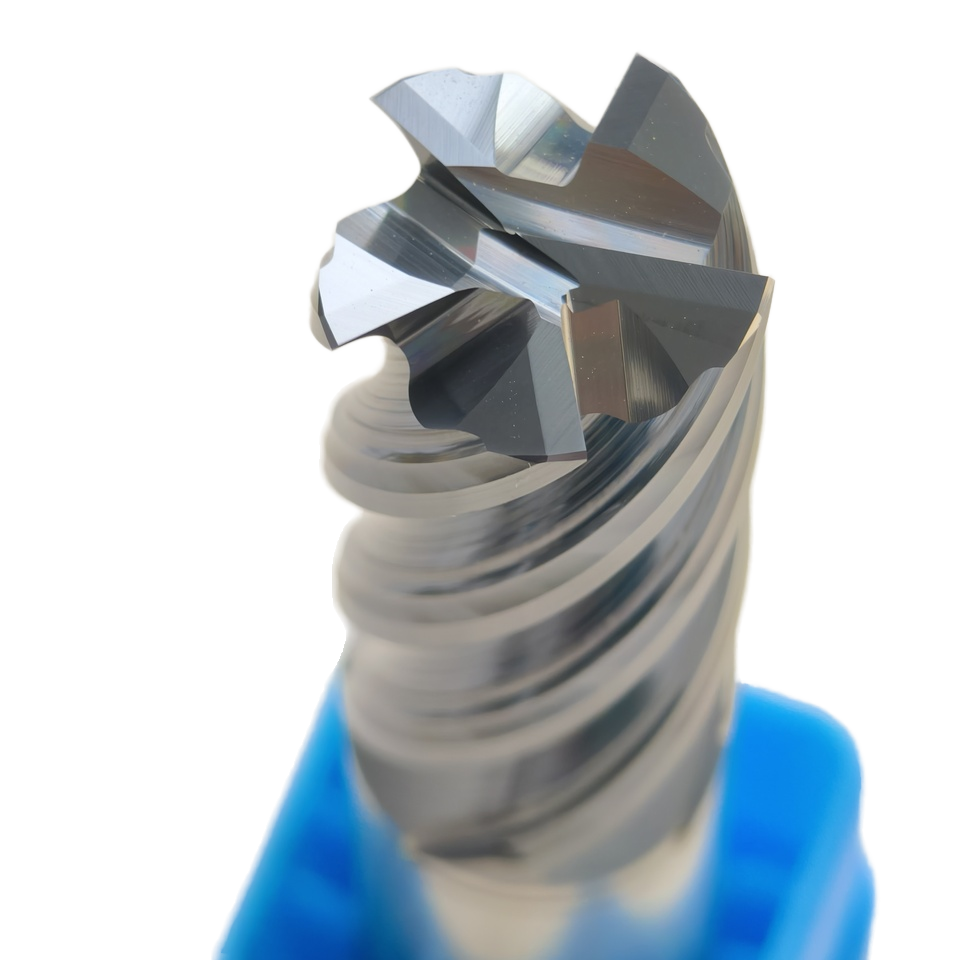

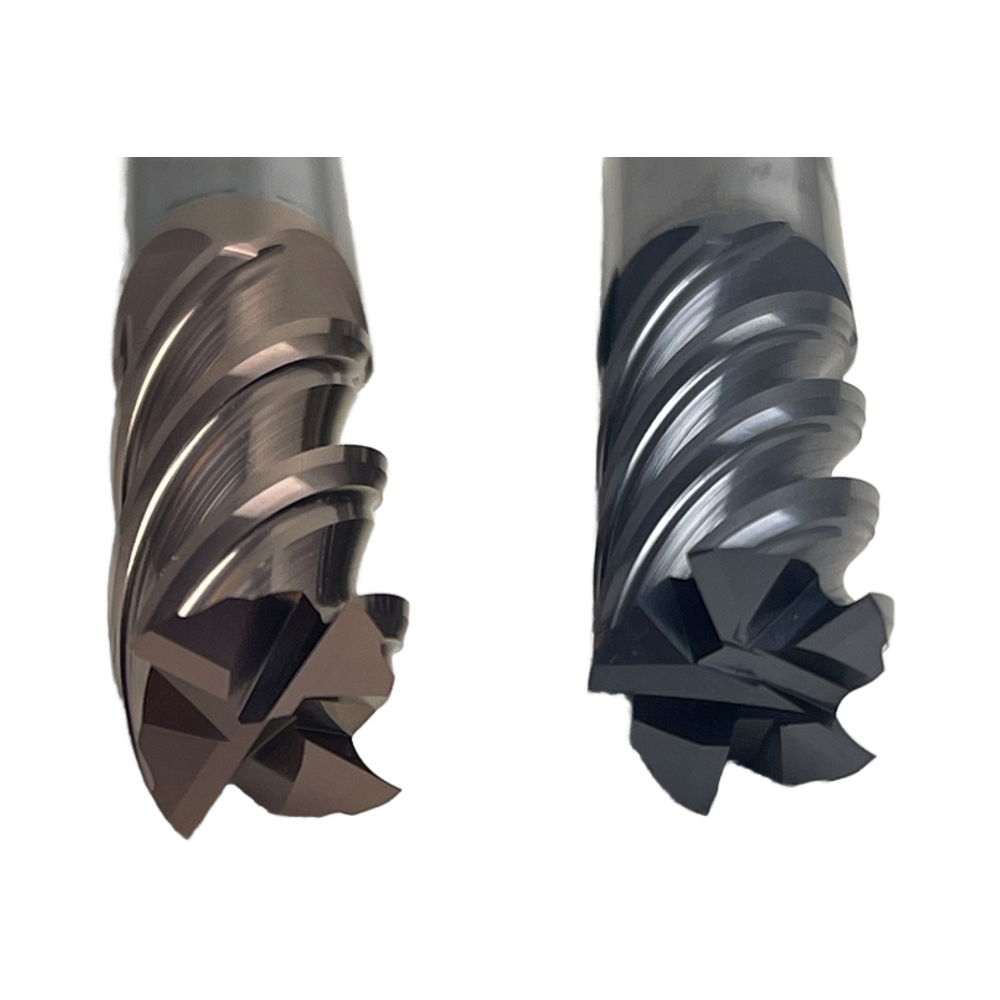

5-Flute • TiCN Coated • 55HRC Hardness •16mm Effective Cutting Length
Engineered for demanding metalworking applications, this 5-flute tungsten carbide end mill delivers exceptional wear resistance, thermal stability, and dimensional accuracy. With a core hardness of 55HRC and advanced TiCN coating, it maintains edge integrity across steel, stainless steel—reducing tool change frequency and maximizing uptime.
Designed for global OEM partners and precision machining workshops, every unit undergoes triple-stage factory inspection and is backed by full customization capability—from geometry adjustments to branding and packaging—ensuring seamless integration into your production workflow.
Sintered from premium-grade tungsten carbide with strict grain control—resists chipping, deformation, and micro-fracture under high feed rates and aggressive depths of cut.
Titanium carbonitride coating provides superior oxidation resistance up to 600°C, reduces friction coefficient by 35%, and extends tool life by 2–3× vs. uncoated equivalents.
Full engineering support for non-standard geometries (helix angle, flute count, corner radius), custom packaging, laser marking, and ISO-compliant documentation—all with no MOQ penalty.
Cylinder head milling, transmission housing profiling, brake caliper machining
Perfect for high-precision machining of 304, 316L austenitic stainless steel, low-hardness alloy steel and general steel. Widely applied in side milling, square shoulder milling, contour milling, dynamic milling (HEM), thin-wall component processing and deep cavity finishing. Suitable for CNC machining centers and high-speed milling operations.
Stainless steel surgical instrument blanks, titanium orthopedic implants, precision enclosures
| Parameter | Value |
|---|---|
| Material | Tungsten Carbide (WC-Co) |
| Coating | TiCN (Titanium Carbonitride) |
| Flute Count | 5 |
| Effective Cutting Length | 16.00mm |
| Diameter Tolerance | h6 (±0.005 mm) |
| Helix Angle | 45° |
| Cutting Direction | Right-hand (standard), left-hand available on request |
| Hardness (HRC) | 55 HRC |
| Application Range | Steel, Stainless Steel, Cast Iron, Aluminum Alloys |
| Origin | Zhuzhou, Hunan Province, China |
| Warranty | 3 months against manufacturing defects |
It is optimized for ferrous and non-ferrous metals including low-to-medium carbon steels (up to 35HRC), austenitic and martensitic stainless steels, gray and ductile cast irons, and wrought aluminum alloys (e.g., 6061, 7075). Not recommended for hardened tool steels (>45HRC) or superalloys without specialized geometry.
Yes. Upon order confirmation, our application engineering team provides a tailored cutting data sheet—including recommended spindle speed (RPM), feed per tooth (mm/tooth), depth of cut (DOC), and coolant strategy—based on your specific machine, workpiece material, and operation type.
Sample requests are accepted for qualified industrial buyers. A nominal fee applies (fully credited against first bulk order), with lead time of 5–7 working days. Sample kits include 1–3 units with full spec sheet and test report.
Every batch undergoes identical QC protocols: raw material certification, green density measurement, sintering profile logging, post-sintering hardness mapping, coating thickness verification (via SEM-EDS), and final geometry CMM audit. Batch certificates are provided with each shipment.
Contact our technical sales team for application-specific recommendations, volume pricing, or OEM engineering collaboration.
