Key Features
Applications Horizontal Directional Drilling, foundation drilling, trenchless pipeline construction.
Precision-engineered for HDD drilling in soil, sand, and soft rock — combining ballistic geometry with ultra-hard tungsten carbide for unmatched penetration and wear resistance.

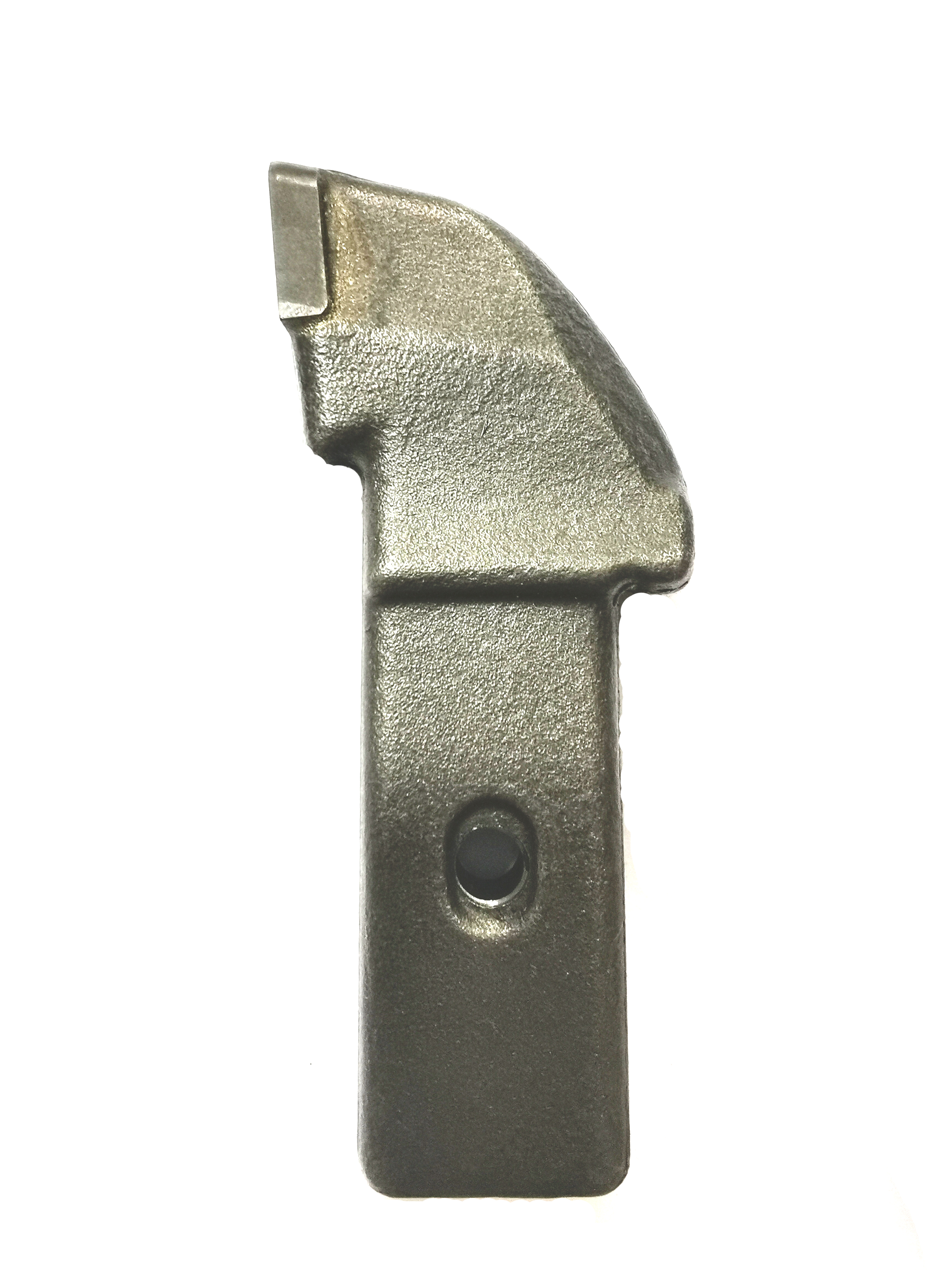

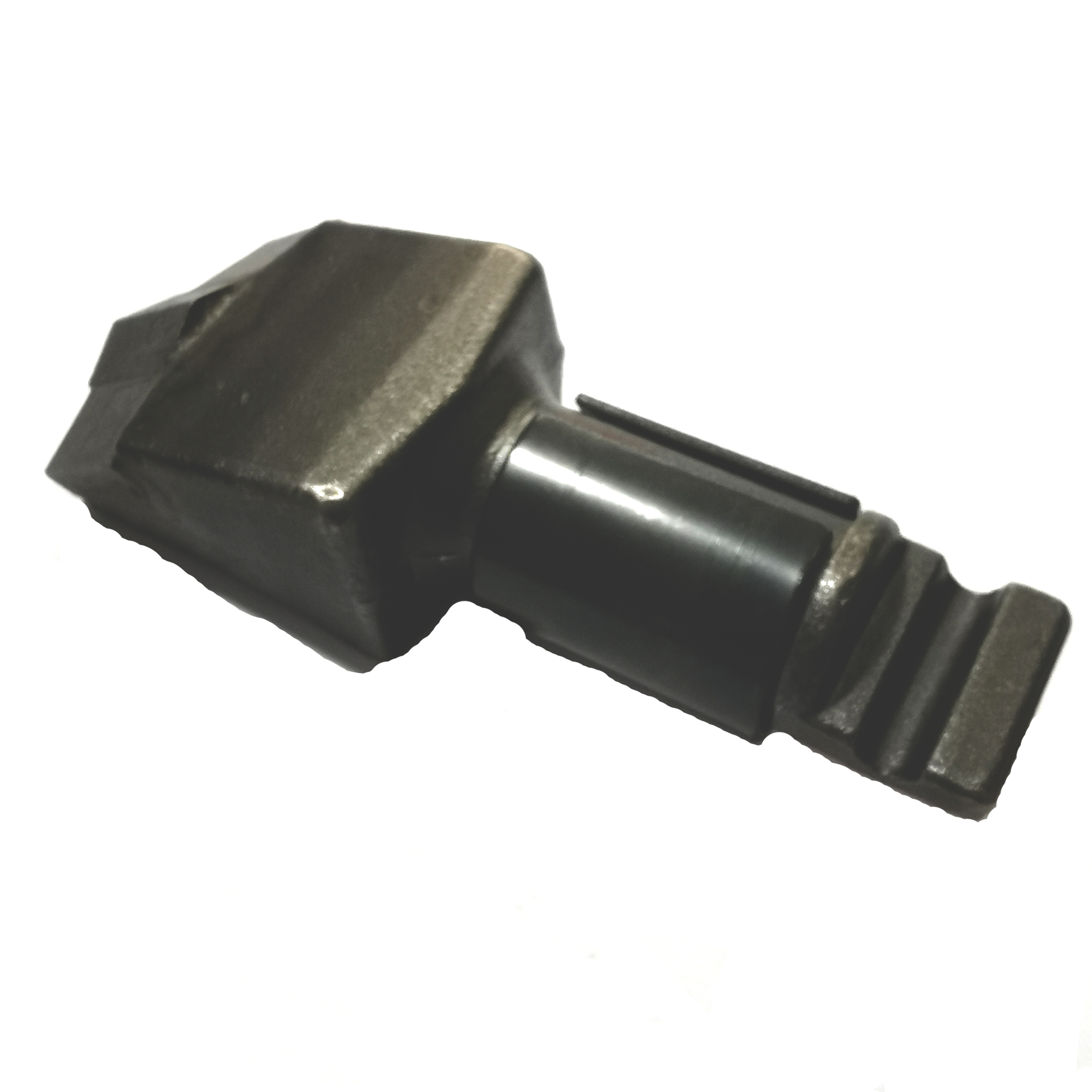

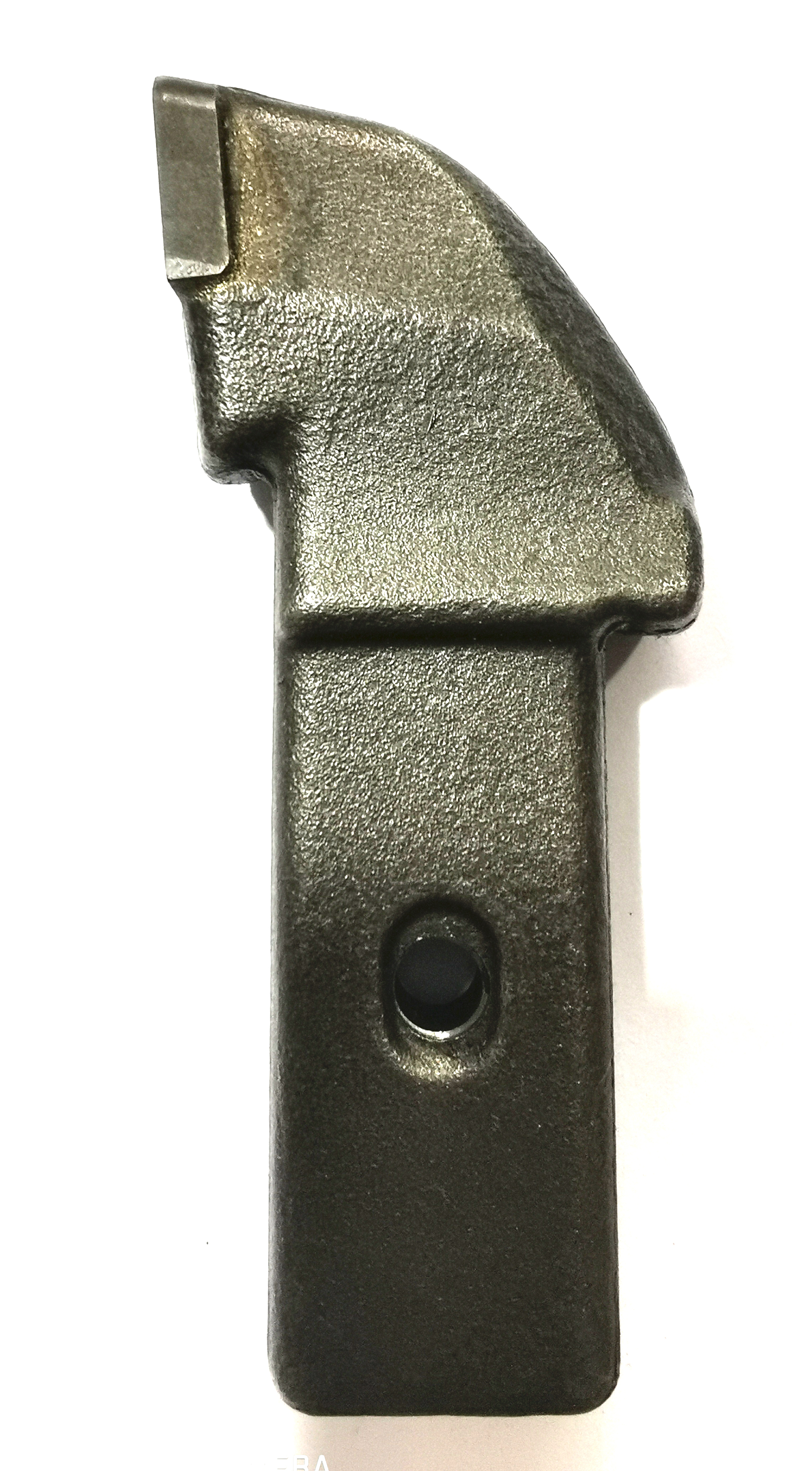

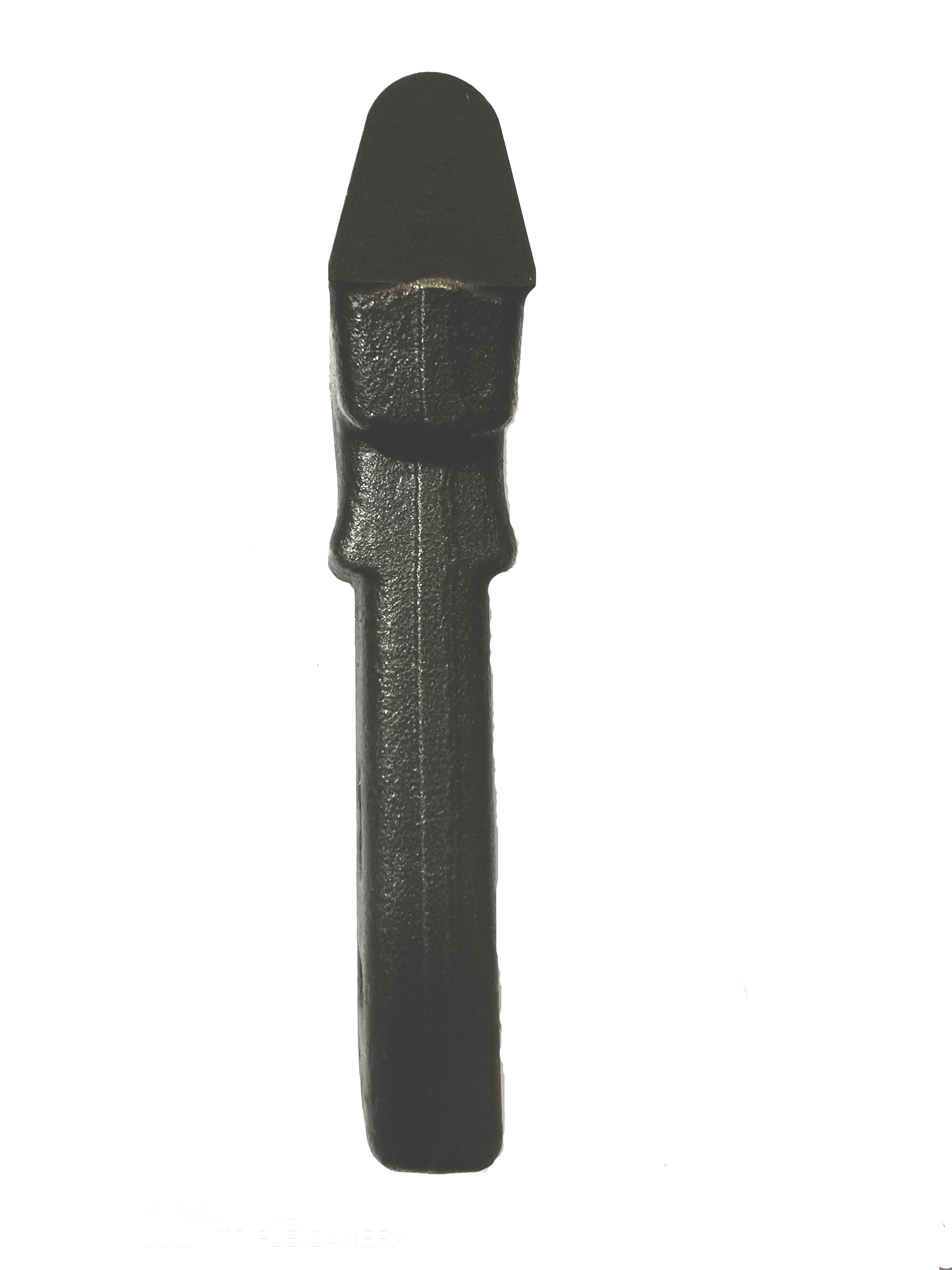

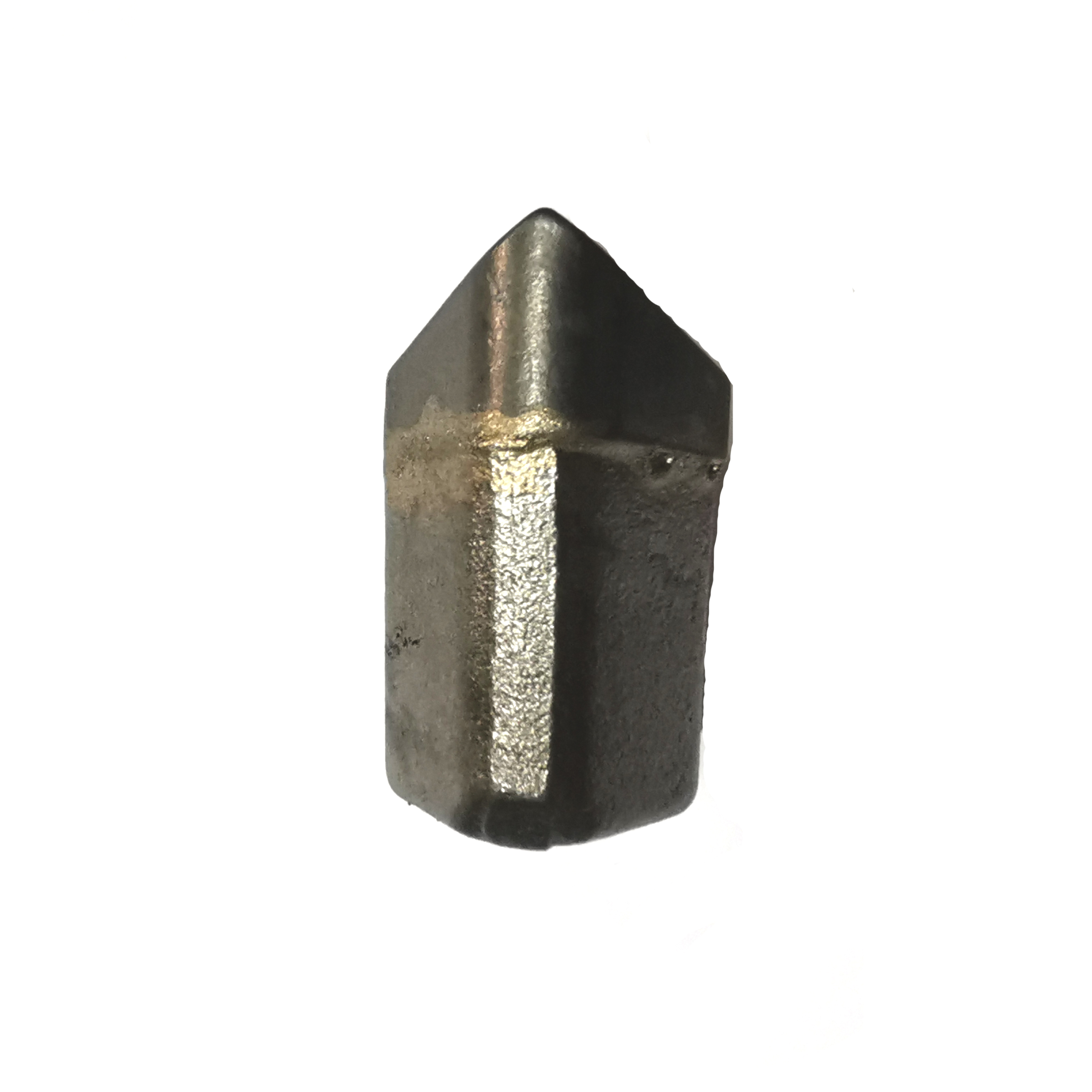

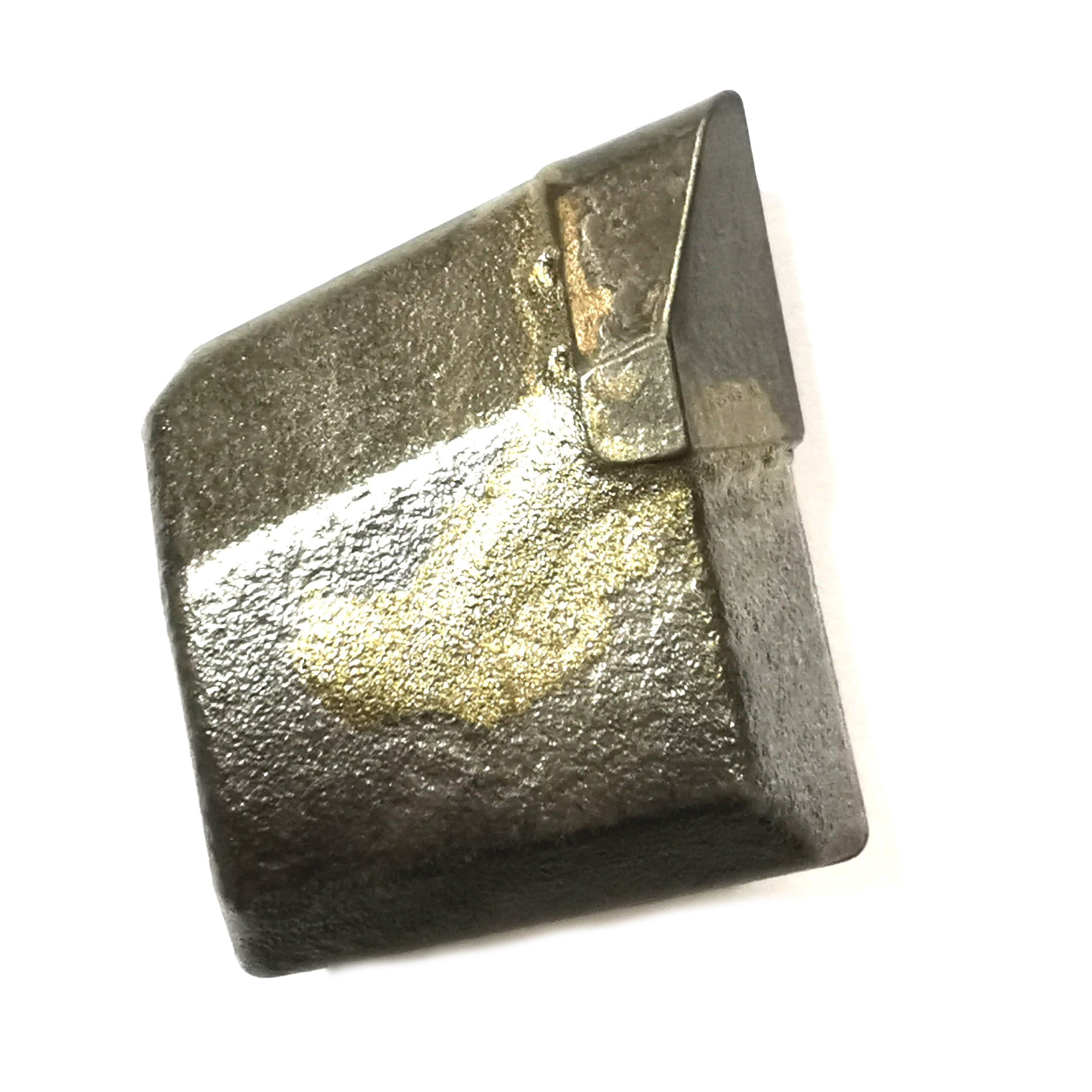

BR1 is a high-performance welded hard alloy tooth designed specifically for horizontal directional drilling (HDD) tooling systems. Its patented conical bullet-shaped geometry delivers superior self-centering action and reduced torque resistance during entry into unconsolidated formations — while the fully sintered 100% virgin tungsten carbide tip (YK05/YG8C grade) ensures exceptional abrasion resistance against silica-rich soils, alluvial sands, and weathered sedimentary rock.
Manufactured by Zhuzhou Site Cemented Carbide Co., Ltd. — a Tier-1 supplier to global HDD equipment OEMs — BR1 teeth undergo strict dimensional validation, hardness testing (≥1480 HV), and thermal shock screening to guarantee consistent performance across multi-shift operations in demanding geotechnical environments.
Conical 30°–35° tip angle enables smooth soil displacement, minimizes vibration, and prevents premature bit deflection in layered strata.
Solid YK05-grade WC-Co tip (94% WC, 6% Co) sintered at 1450°C — no coating, no cladding, full bulk hardness retention under thermal cycling.
Vacuum-brazed joint (Ni-Cr-B alloy) tested to ≥1200 MPa shear strength — eliminates tip pull-out during high-torque rotary drilling.
Optimized for cohesive loams, clay-silt mixes, and riverbed deposits — maintains cutting edge integrity after >200 linear meters.
Resists rapid erosion from quartz-abrasive media; conical shape prevents sand packing and heat buildup.
Effective on shale, marl, weathered limestone (UCS ≤ 60 MPa) — delivers 3× longer life vs. standard flat-tip teeth.
| Model | BR1 |
| Tip Geometry | Conical bullet (32° apex angle) |
| Carbide Grade | YK05 / YG8C / YD020 (selectable) |
| Hardness (HV) | ≥1480 HV (as-sintered) |
| Dimensions (mm) | 20 × 15 × 7.5 (L × W × H) |
| Bonding Method | Vacuum brazing (Ni-Cr-B alloy) |
| Surface Finish | Polished (Ra ≤ 0.4 μm) |
BR1 teeth are engineered for direct replacement on Vermeer D27x30, D40x55, D60x70 series drill bits, as well as TerraVibe, Ditch Witch JT40/60, and custom OEM tooling with 15mm mounting pockets.
In controlled field trials on quartz-rich alluvial sand, BR1 achieved 3.2× longer service life and reduced torque variance by 41% — due to its self-cleaning conical profile and uniform stress distribution.
Yes. Zhuzhou Site supports OEM/ODM requests including custom tip angles (28°–40°), alternate grades (YD020 for higher toughness), and modified base geometries — lead time: 12–18 working days.
Each lot includes a Certificate of Conformance (CoC), microhardness test report (per ISO 6507), and dimensional inspection sheet (CMM verified). Third-party SGS reports available upon request.
Request a sample set, technical consultation, or OEM quotation — backed by 3-month performance warranty and factory-direct support.
