Tungsten carbide anti-vibration cutter holder is an important tool for machining in CNC machining. Its main function is to avoid vibration of cutter tools in maximum. Especially as the CNC precision machining developing,the traditional CNC machining from 5000 rpm,6000 to 8000 rpm,after more sophisticated and efficient cutting speed will be developed to more than 20,000 turn. It need higher anseismatic performance to the holder under such high-speed cutting. So the tugnsten carbide holder must be uniform material, good seismic and Precision concentric. All this can achieve such a high speed cutting operation requirements.This kind holder can greatly extend the cutter lifetime.

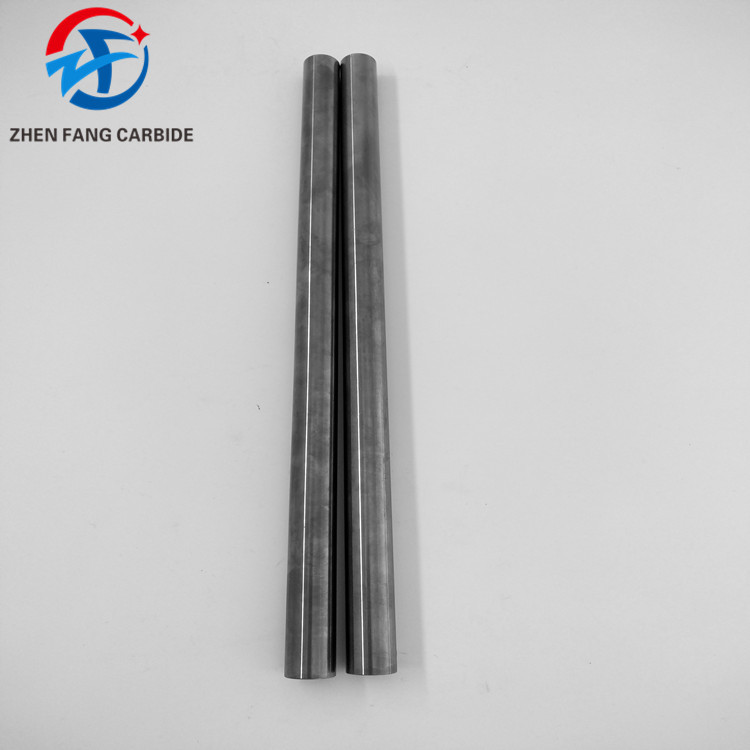

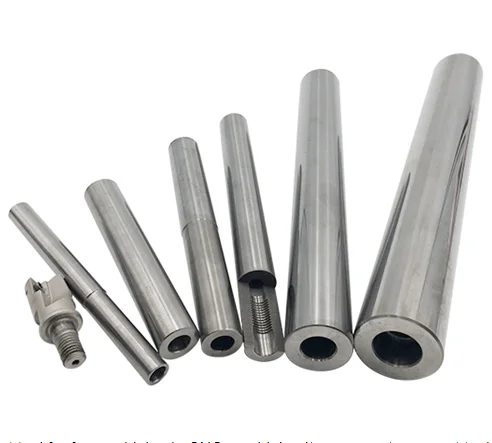

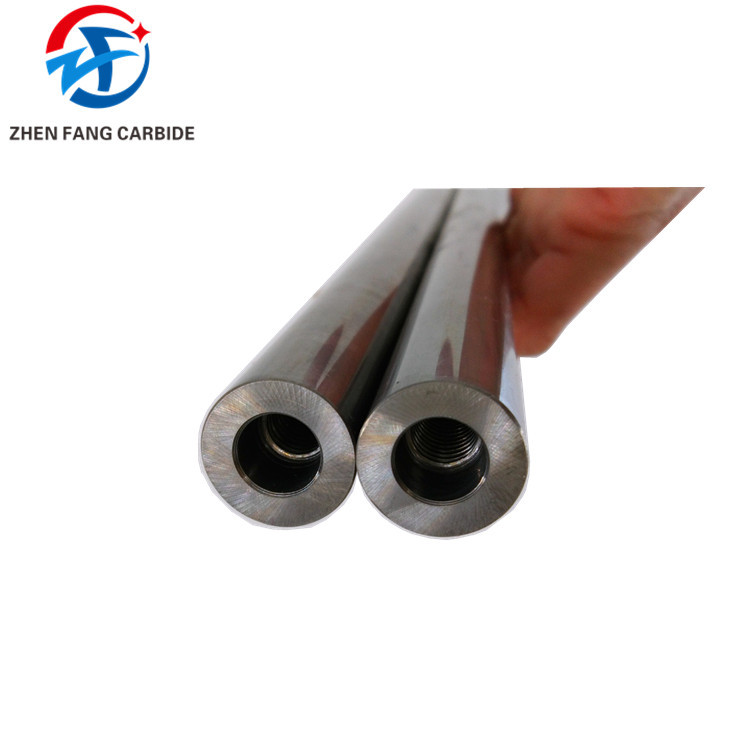

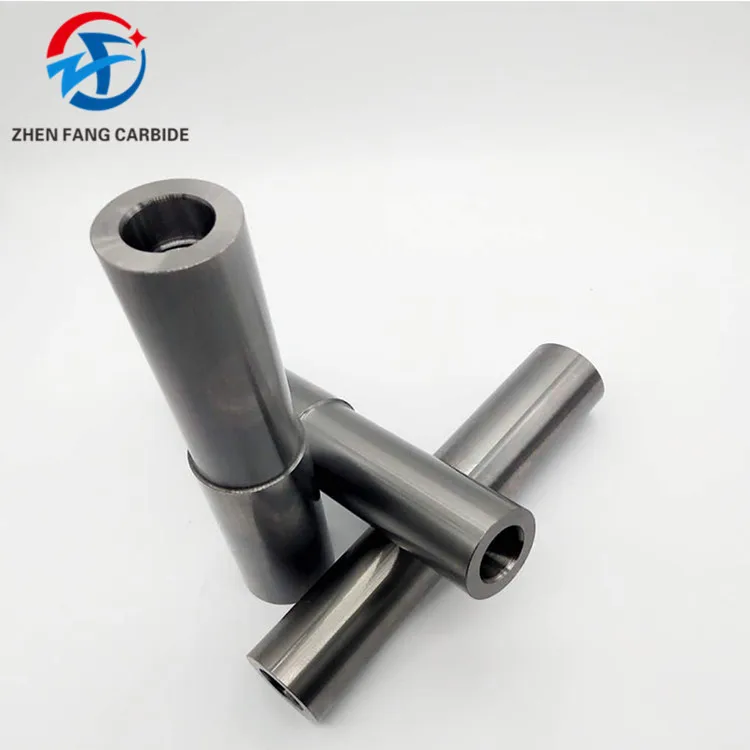

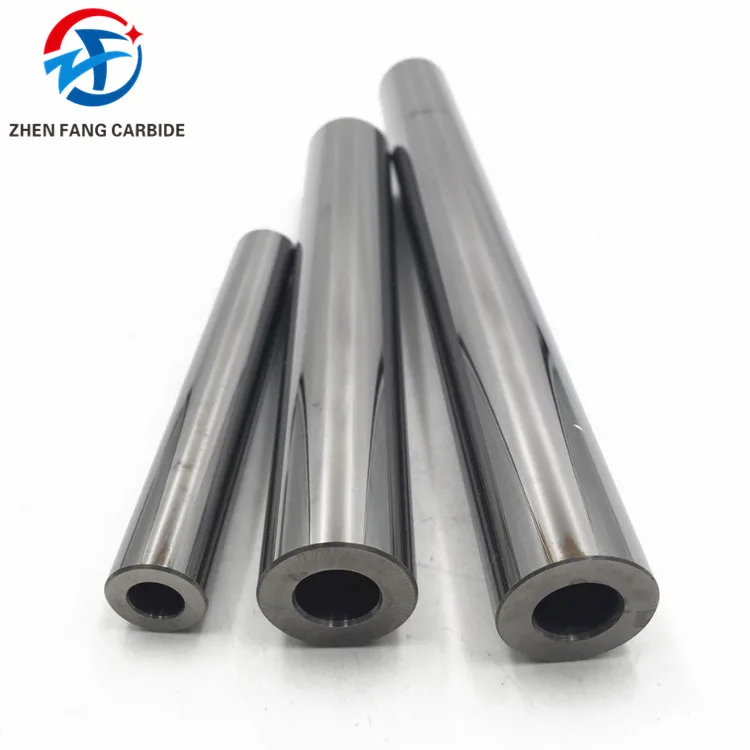

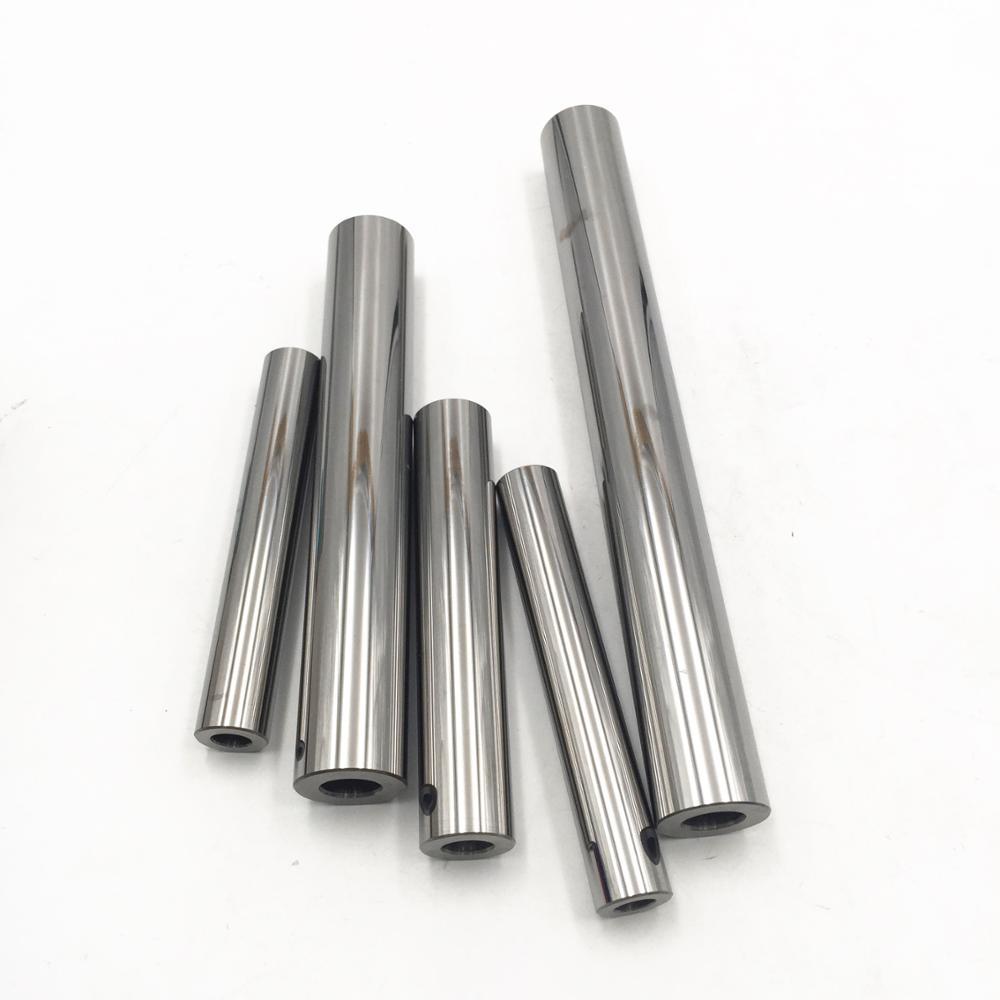

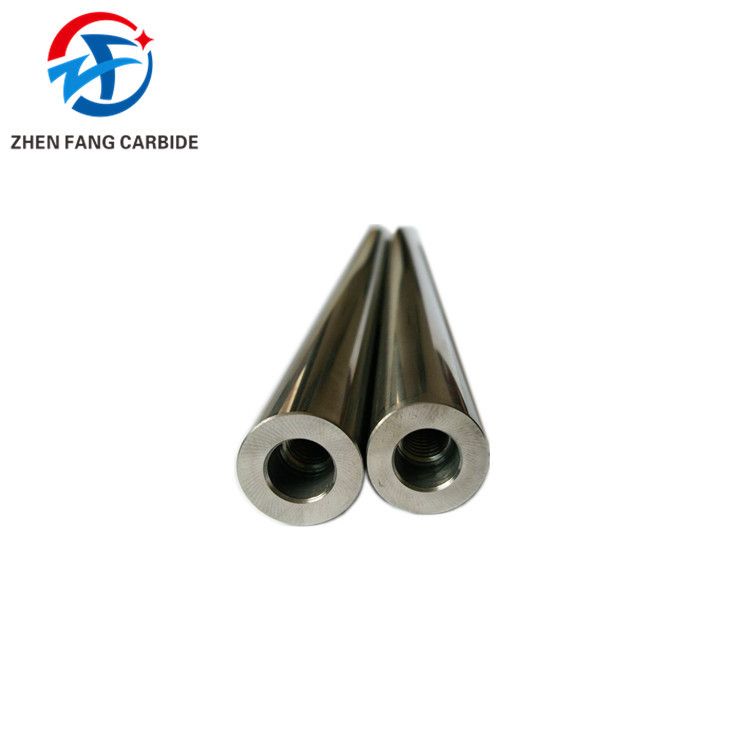

Name: | Tungsten Carbide Seismic Boring Bar |
Size: | Diamater:8mm~32mm Length:80mm~450mm |
Inner Thread | M4~M16 |
Applicable Inserts | Various: PPH/BAP3.4/EMR etc. |
Application: | CNC Boring Bar of precision CNC machining |
Material: | Tungsten Carbide |
1. High hardness, High rigidity and extra vibration resistance, most suitable for extra depth boring
2.Standard internal coolant hole is built in every size of the bar best for cooling and chip evacuation in deep hole boring.
3.Featuring straight shank structure, the bar can be adjusted to different working lengths.

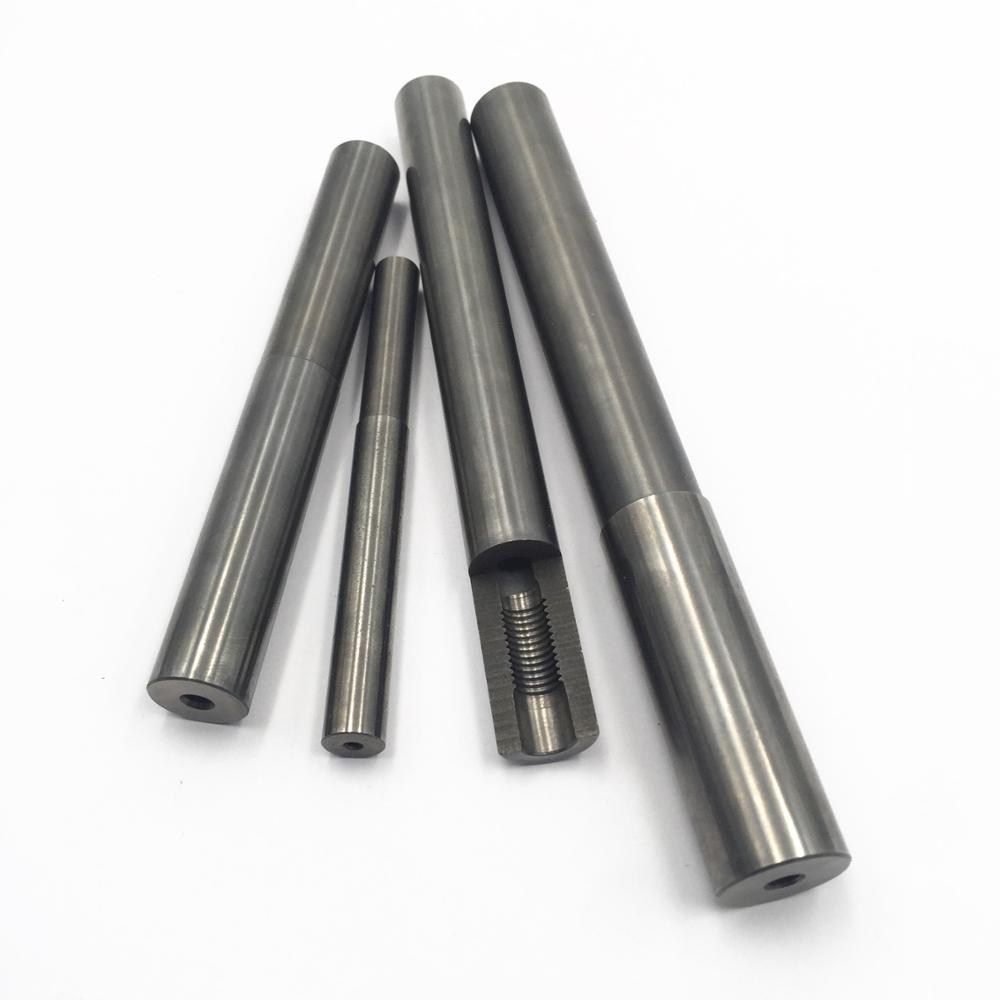

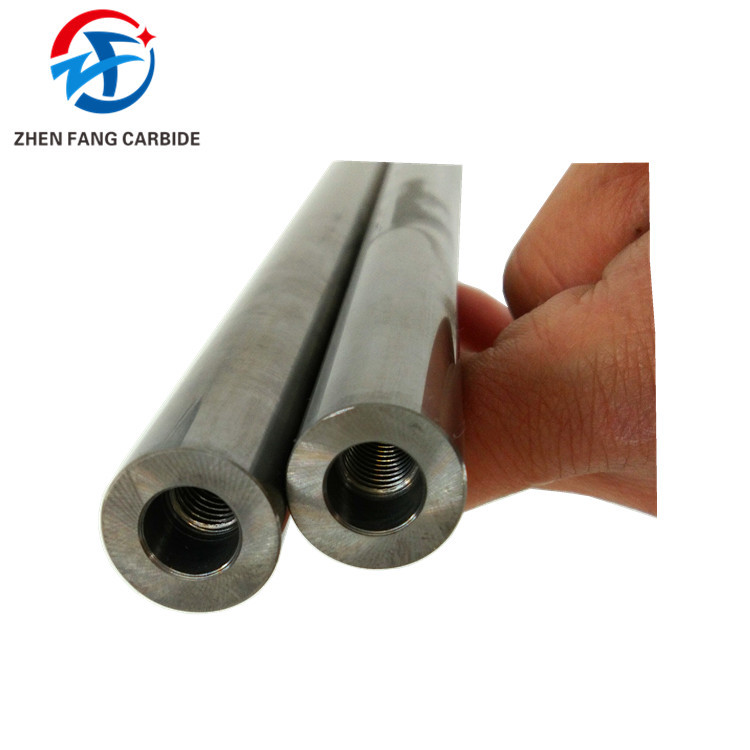

4. Internal Thread which make it convenient for changing cutter based on different machining.

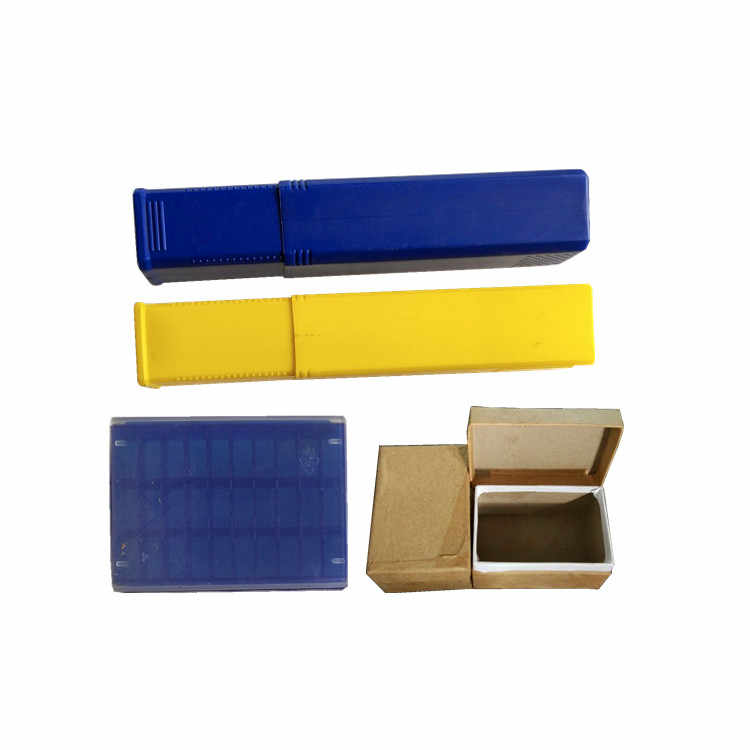

Packaging | ||
Size | Customized | |
Weight | Based on detail products | |

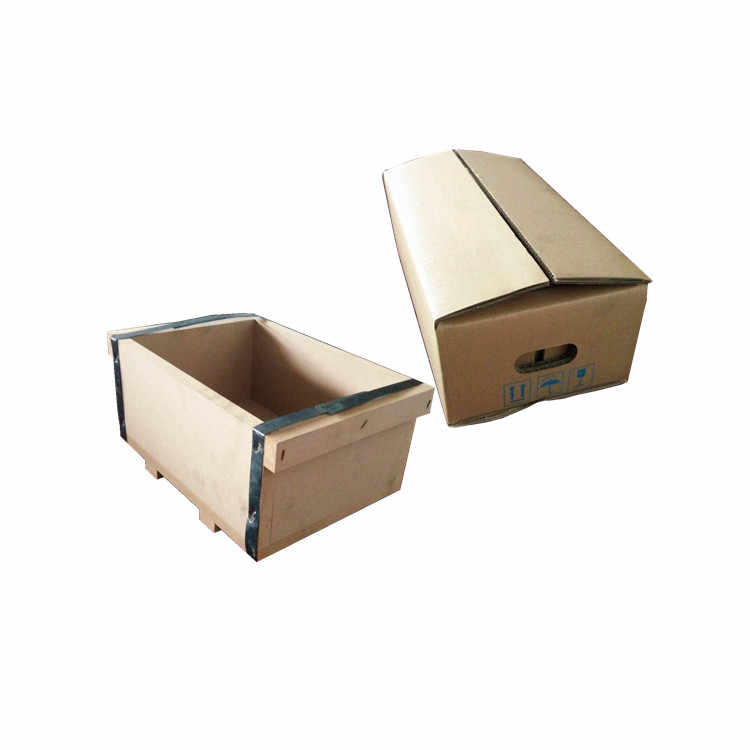

Packaging Details | outside Plywood case or carton packing with inner packing | |
